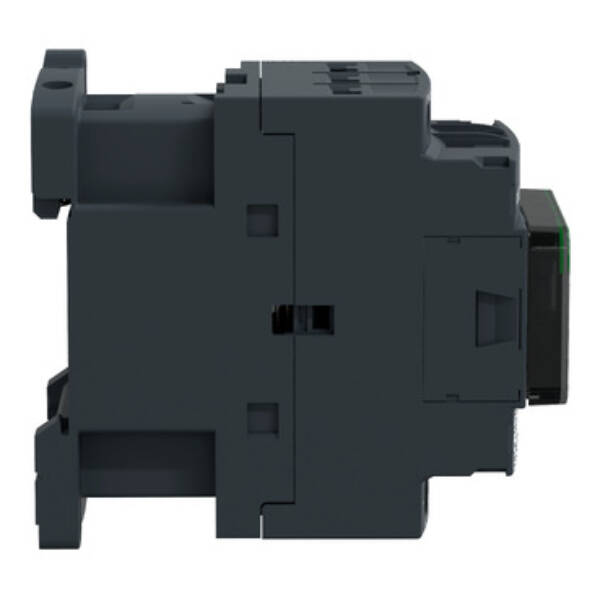

TeSys D control relay - 5 NO - <= 690 V - 48 V AC standard coil - Schneider Electric - CAD50E7

TeSys D control relay - 5 NO - <= 690 V - 48 V AC standard coil - Schneider Electric - CAD50E7

CAD50E7

TeSys D control relay - 5 NO - <= 690 V - 48 V AC standard coil - Schneider Electric - CAD50E7

Control

~~List Price £47.33 +VAT~~

Our Price £35.50 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys K, D, SK Control Relays
Part No: CAD50E7
Weight (kg): 0.36 kg
Type: TeSys K, D, SK Control Relays
Rated control supply voltage Us at AC 50HZ: 48 V
Rated control supply voltage Us at AC 60HZ: 48 V
Interface: FALSE
Connection type auxiliary circuit: Screw connection
With LED indication: FALSE
Number of auxiliary contacts as normally open contact: 5
Mounting method: DIN-rail/screw
Rated operation current Ie, 400 V: 10
Voltage type for actuating: AC
Manual operation possible: FALSE

Datasheet for CAD50E7 - TeSys D control relay - 5 NO - <= 690 V - 48 V AC standard coil - Schneider Electric - CAD50E7

Download
