TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 115 V AC coil - Schneider Electric - LC2D80FE7
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 115 V AC coil - Schneider Electric - LC2D80FE7

LC2D80FE7

TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 115 V AC coil - Schneider Electric - LC2D80FE7

Control

List Price £843.59 +VAT

Our Price £632.69 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

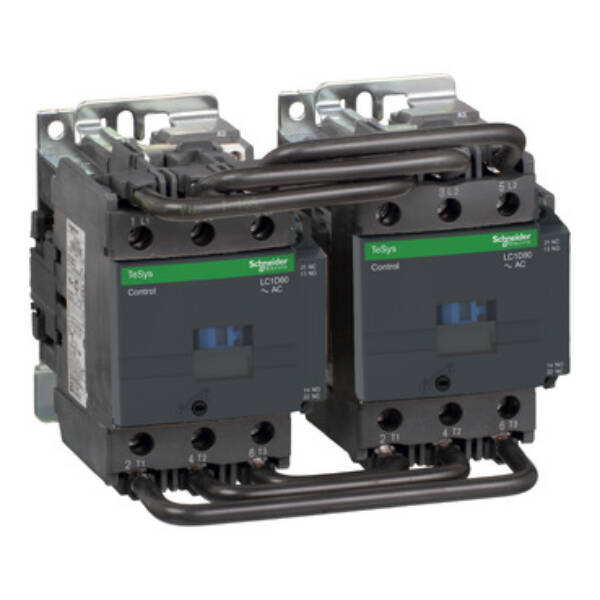

TeSys Deca reversing contactor, 3P(3NO) for category AC-3/AC-3e applications up to 80A @440V. It is provided with 115V 50/60Hz standard coil, with 1NO+1NC auxiliary contact, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 1.5 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 182mm x 158mm (H x W x D), mounting on rail or plate. "This device is preassembled with reversing power busbar." Multi standards certified(UL,LROS,CSA,CCC,UKCA,DNV,RINA,BV,GOST,GL).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D80FE7
Weight (kg)
3.76 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
115 V
Rated operation power NEMA
44.8
Rated control supply voltage Us at AC 60HZ
115 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
80
Degree of protection (IP)
IP20
Function
Reversing safety
Rated operation power at AC-3, 400 V
37
Degree of protection (NEMA)
Other

Datasheet for LC2D80FE7 - TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 80 A - 115 V AC coil - Schneider Electric - LC2D80FE7
