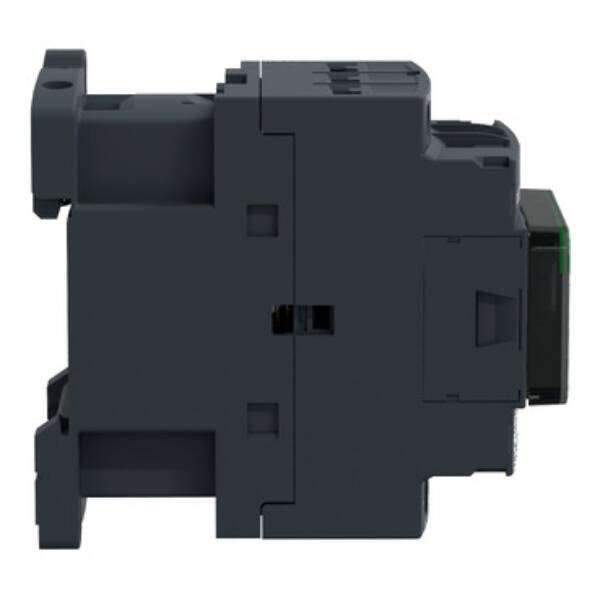

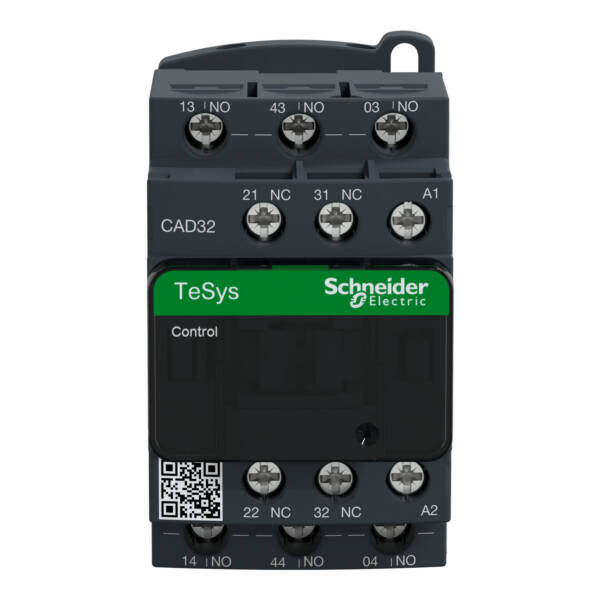

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC low consumption coil - Schneider Electric - CAD32JL

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC low consumption coil - Schneider Electric - CAD32JL

CAD32JL

TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC low consumption coil - Schneider Electric - CAD32JL

Control

~~List Price £79.75 +VAT~~

Our Price £59.81 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 12V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys K, D, SK Control Relays
Part No: CAD32JL
Weight (kg): 0.54 kg
Type: TeSys K, D, SK Control Relays
Interface: FALSE
Number of auxiliary contacts as normally closed contact: 2
Connection type auxiliary circuit: Screw connection
With LED indication: FALSE
Number of auxiliary contacts as normally open contact: 3
Mounting method: DIN-rail/screw
Rated operation current Ie, 400 V: 10
Voltage type for actuating: DC
Rated control supply voltage Us at DC: 12 V
Manual operation possible: FALSE

Datasheet for CAD32JL - TeSys D control relay - 3 NO + 2 NC - <= 690 V - 12 V DC low consumption coil - Schneider Electric - CAD32JL

Download
