TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V DC standard coil - Schneider Electric - LC1DT406BD

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V DC standard coil - Schneider Electric - LC1DT406BD

LC1DT406BD

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V DC standard coil - Schneider Electric - LC1DT406BD

Control

~~List Price £186.94 +VAT~~

Our Price £140.21 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

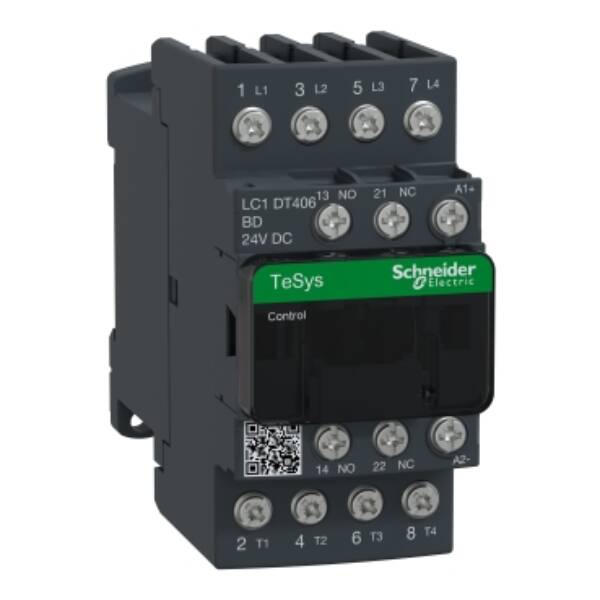

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lug-ring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1DT406BD
Weight (kg): 0.62 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Other
Width: 45
Number of normally open contacts as main contact: 4
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Depth: 107
Rated operation current Ie at AC-1, 400 V: 40
Voltage type for actuating: DC
Height: 91
Rated control supply voltage DC: 24 Volt

Datasheet for LC1DT406BD - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 24 V DC standard coil - Schneider Electric - LC1DT406BD

Download
