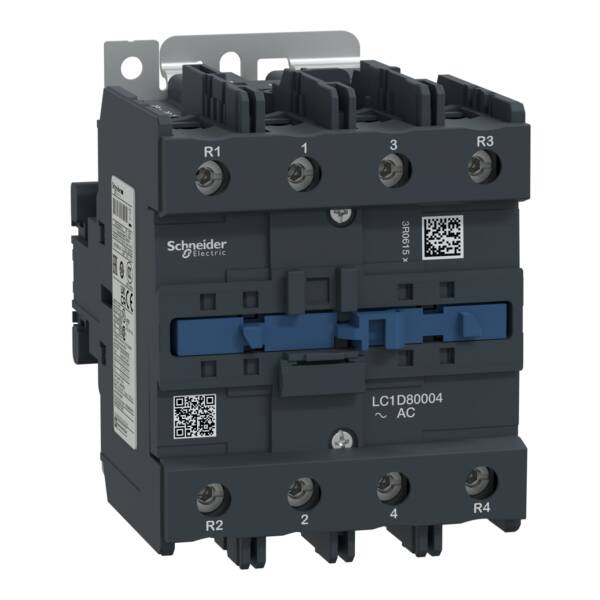

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 230 V AC 50 Hz coil - Schneider Electric - LC1D80004P5

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 230 V AC 50 Hz coil - Schneider Electric - LC1D80004P5

LC1D80004P5

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 230 V AC 50 Hz coil - Schneider Electric - LC1D80004P5

Control

~~List Price £533.61 +VAT~~

Our Price £400.21 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 125A/1000V AC-1. It provides a 230V 50Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D80004P5
Weight (kg): 1.71 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 96
Rated control supply voltage AC 50 Hz: 230 Volt
Number of normally open contacts as main contact: 4
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 125
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 125
Height: 127
Voltage type for actuating: AC

Datasheet for LC1D80004P5 - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 230 V AC 50 Hz coil - Schneider Electric - LC1D80004P5

Download
