ZD4PA103

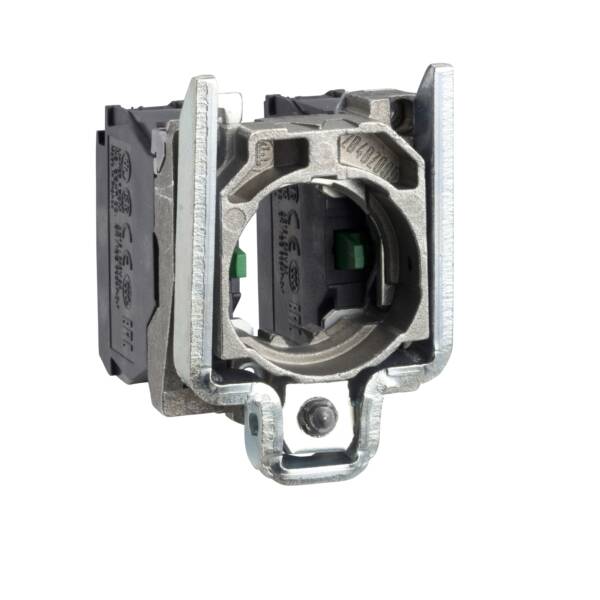

contact block with body/fixing collar for 2-direction joystick controller - Schneider Electric - ZD4PA103

Control

~~List Price £16.45 +VAT~~

Our Price £12.34 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

This Harmony XB4 contact block operates with 2 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 2-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types.

Brand: Schneider Electric
Range: Harmony XB4
Part No: ZD4PA103
Weight (kg): 0.06 kg
Type: Harmony XB4
Number of contacts as normally open contact: 2
Type of electric connection: Screw connection
Model: Integrable
Rated operation current Ie at AC-15, 230 V: 3
Mounting method: Front fastening
Lamp holder: None
