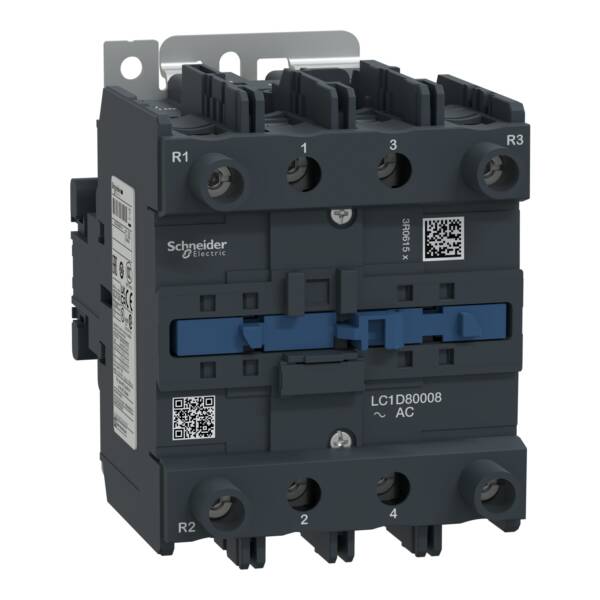

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 125 A 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80008U7
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 125 A 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80008U7

LC1D80008U7

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 125 A 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80008U7

Control

List Price £575.02 +VAT

Our Price £431.27 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys Deca contactor, 4 poles(2NO+2NC) for category AC-1 applications up to 125A @440V." It provides with 240V 50/60 Hz coil, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 140mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,CSA,UL,UKCA,CB,EAC).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D80008U7
Weight (kg)
1.84 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
240 V
Rated control supply voltage Us at AC 60HZ
240 V
Number of normally closed contacts as main contact
2
Number of main contacts as normally open contact
2
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
125
Voltage type for actuating
AC

Datasheet for LC1D80008U7 - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 125 A 240 V AC 50/60 Hz coil - Schneider Electric - LC1D80008U7
