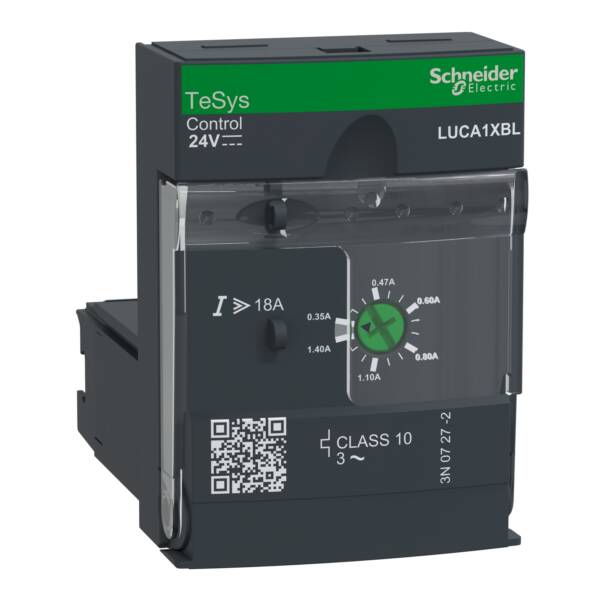

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA1XBL
Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA1XBL

LUCA1XBL

Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA1XBL

Control

List Price £78.09 +VAT

Our Price £58.57 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.25kW@400V. It provides full protection to motors with a rated current Ir 0.35-1.4A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCA1XBL
Weight (kg)
0.12 kg
Type
TeSys U
Type of motor protection
Thermal/magnetic release
Number of poles
3
Rated control supply voltage Us at DC
24 V
Initial value of the undelayed short-circuit release - setting range
18
Voltage type for actuating
DC
End value adjustment range undelayed short-circuit release
18
With ground fault protection function
TRUE
Overload release current setting
0.35…1.4 A
Rated permanent current Iu
1.4
Short-circuit release function
Undelayed

Datasheet for LUCA1XBL - Standard control unit, TeSys U, 0.35-1.4A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA1XBL

Download
