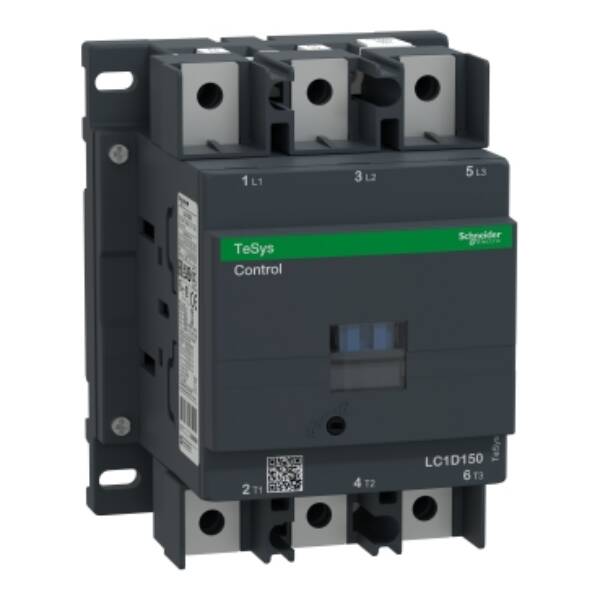

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 24 V DC standard coil - Schneider Electric - LC1D1506BD
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 24 V DC standard coil - Schneider Electric - LC1D1506BD

LC1D1506BD

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 24 V DC standard coil - Schneider Electric - LC1D1506BD

Control

List Price £637.73 +VAT

Our Price £478.30 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
"TeSys Deca contactor, 3P(3NO) for category AC-3 applications on motor control up to 150A @440V." It provides with 24V DC standard coil, with 1NO+1NC auxiliary contacts, power and control connections by bars/lugs-ring terminals. It procures high reliability and durability with 8 Mcycles mechanical durability and 0.85 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C. The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,DNV,GOST,RINA,CSA,CCC,BV,GL,UKCA).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D1506BD
Weight (kg)
2.21 kg
Type
TeSys Deca contactors

Datasheet for LC1D1506BD - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 150 A - 24 V DC standard coil - Schneider Electric - LC1D1506BD
