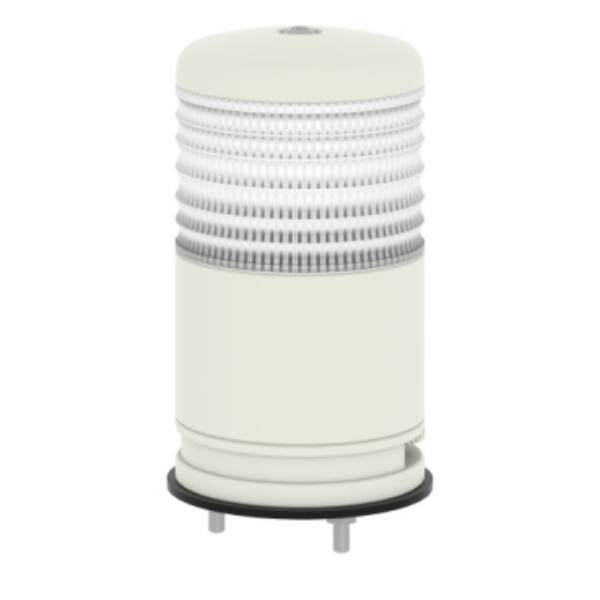

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 1 red illuminated signaling unit and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 200g and it is 121mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.

Brand

Schneider Electric

Range

Harmony XVC

Part No

XVC6B15SK

Weight (kg)

0.44 kg

Type

Harmony XVC

Function continuous light

TRUE

Rated operating voltage Ue

24 V

Voltage type for actuating

AC/DC

Degree of protection (IP)

IP54

Flashing light

TRUE

Number of signal tower elements

1

Loudness

85

Outer diameter

60

Function acoustic

TRUE

Function flashlight

TRUE
