LC1D50ABBE

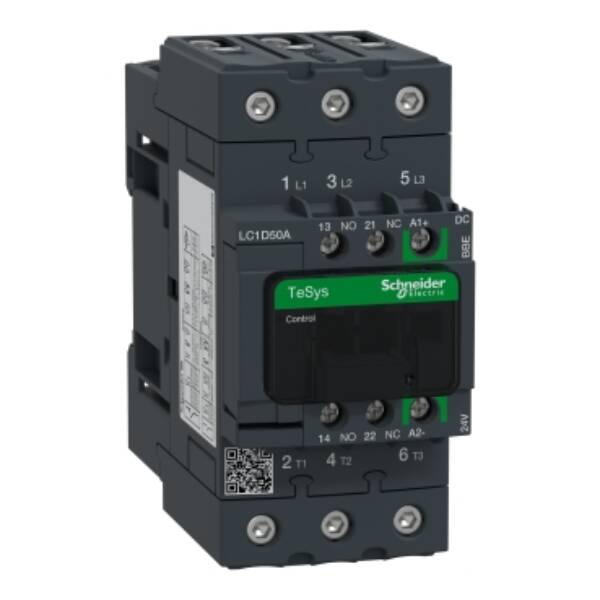

TeSys D contactor - 3P - <= 440 V - 50 A AC-3 - 24 V DC coil - Schneider Electric - LC1D50ABBE
Automation
TeSys D contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). It provides a low consumption 24V DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Our Price £173.04 +VAT
SAVE 26% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys Deca contactors
- Range
- TeSys Deca contactors
- Part No
- LC1D50ABBE
- Weight (kg)
- 1.06 kg
