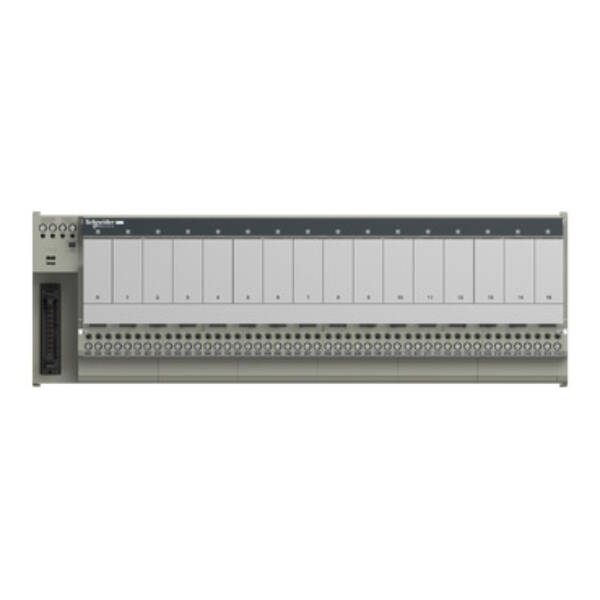

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm - Schneider Electric - ABE7R16T330

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm - Schneider Electric - ABE7R16T330

ABE7R16T330

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm - Schneider Electric - ABE7R16T330

Automation

~~List Price £270.85 +VAT~~

Our Price £216.68 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has change over contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 1.3kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S33 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand: Schneider Electric
Range: Advantys Telefast ABE 7
Part No: ABE7R16T330
Weight (kg): 1.10 kg
Type: Advantys Telefast ABE 7
Colour: Grey
Length: 89
Type of electrical connection 2: Plug-in connection
Type of electrical connection 1: Screw connection
Rated voltage: 30
Number of clamp positions per pole: 2
Inflammability class of insulation material acc. with UL94: Other
Mounting method: DIN rail (top hat rail) 35 mm
Height at lowest possible mounting height: 83
Drill hole distance centrically: 10
Connectable conductor cross section solid-core: 0.324 mm²
Width/grid dimension: 272
Closing plate required: FALSE
Connection position: Above
Explosion-tested version 'Ex e': FALSE
Material insulation body: Thermoplastic
Number of poles: 16
Operation temperature: -5…60 °C
Transparent: FALSE
Rated current In: 1

Datasheet for ABE7R16T330 - Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 12.5 mm - Schneider Electric - ABE7R16T330

Download
