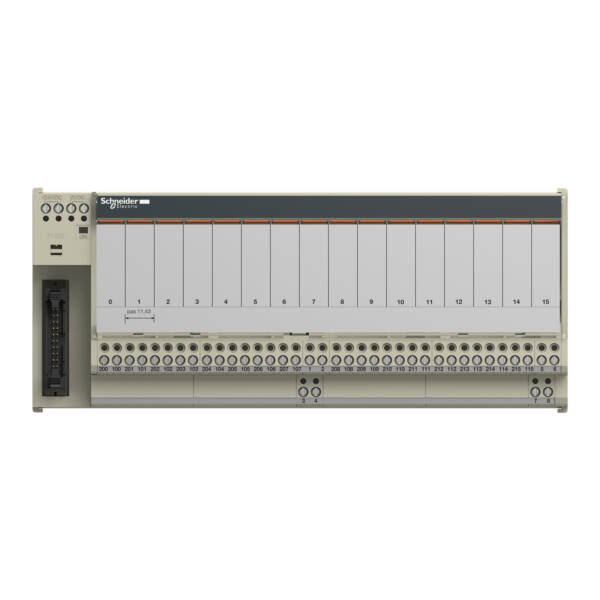

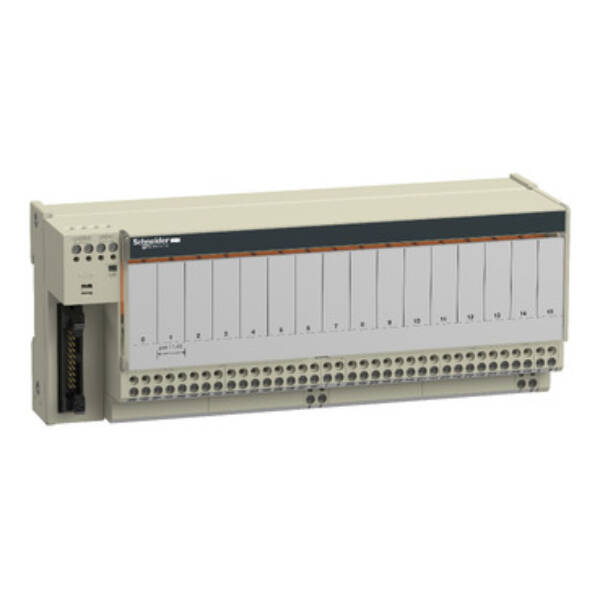

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has normally opened contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.735kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S21 plug-in relay. The fixing is done by clips (35mm DIN rail) and screws (surface mount with kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7R16T210

Weight (kg)

0.70 kg

Type

Advantys Telefast ABE 7

Type of electrical connection 2

Plug-in connection

Colour

Grey

Type of electrical connection 1

Screw connection

Rated voltage

24

Number of clamp positions per pole

2

Inflammability class of insulation material according to with UL94

Other

Drill hole distance centrically

10

Mounting method

DIN rail (top hat rail) 35 mm

Halogen free

FALSE

Connectable conductor cross section solid-core

0.324 Square millimetre

Closing plate required

FALSE

Explosion-tested version 'Ex e'

FALSE

Material insulation body

Thermoplastic

Number of poles

16

Operating temperature

-5…60 Degrees celsius

Transparent

FALSE

Rated current In

0.09
