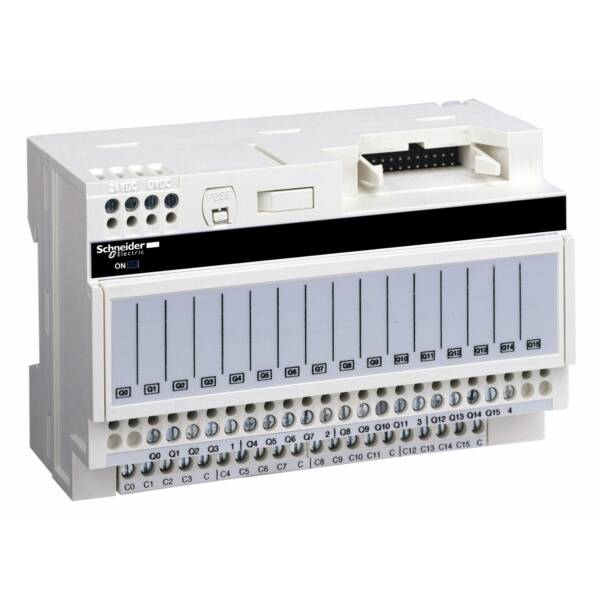

sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm - Schneider Electric - ABE7P16T111
sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm - Schneider Electric - ABE7P16T111

ABE7P16T111

sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm - Schneider Electric - ABE7P16T111

Automation

List Price £122.46 +VAT

Our Price £97.97 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base with plug-in relays (relay size 5mm) for 16 channels, an integral NO contact, with 2 terminals per channel." "Its control circuit voltage is 24VDC." "It makes use of the sub-base functions to connect the channel without the need to adapt the channel using a relay." "It is furnished with screw terminal for electrical connection, with a 20-way HE10 connector, without relays." "It can accept both electromechanical and solid state relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a plug-in relay sub-base with IP20 degree of protection. It weighs 0.550kg." 0 "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with ABE7 sub-bases and ABR7 and ABS7 relays." "It is delivered in 1 package (PCE type). Plug-in relays (size 5mm) are to order separately." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Brand
Schneider Electric
Range
Advantys Telefast ABE 7
Part No
ABE7P16T111
Weight (kg)
0.23 kg
Type
Advantys Telefast ABE 7

Datasheet for ABE7P16T111 - sub-base for plug-in relay ABE7 - 16 channels - relay 5 mm - Schneider Electric - ABE7P16T111
