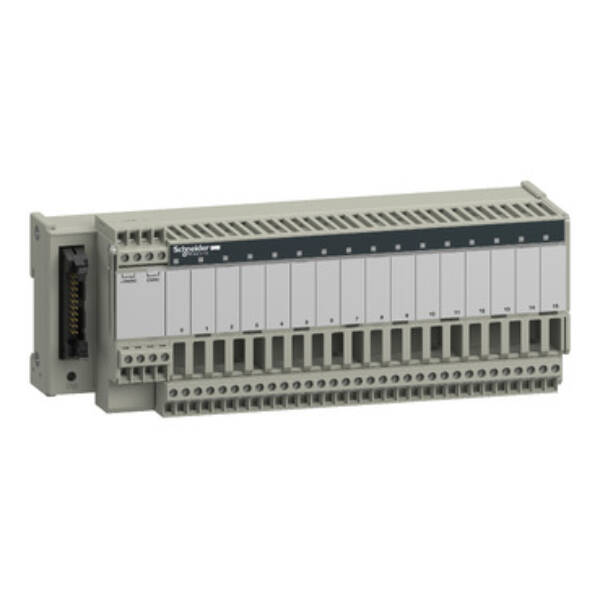

sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC - Schneider Electric - ABE7S16E2F0

sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC - Schneider Electric - ABE7S16E2F0

ABE7S16E2F0

sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC - Schneider Electric - ABE7S16E2F0

Automation

~~List Price £180.63 +VAT~~

Our Price £144.50 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered solid state output relay sub base offers 16 channels with 2 terminals per channel. The solid state input relay sub base offers a rated supply voltage of 110V/130V AC 50Hz/60Hz for sensor end and 24V DC for PLC end. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 206mm (width) x 58mm (depth) x 77mm (height). It weighs 0.397kg. It is suitable for all types of industrial applications. This product is certified by BV, UL, GL, DNV, CSA, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand: Schneider Electric
Range: Advantys Telefast ABE 7
Part No: ABE7S16E2F0
Weight (kg): 0.48 kg
Type: Advantys Telefast ABE 7
Colour: Grey
Length: 58
Type of electrical connection 2: Plug-in connection
Type of electrical connection 1: Screw connection
Rated voltage: 115
Number of clamp positions per pole: 2
Inflammability class of insulation material acc. with UL94: Other
Mounting method: Other
Height at lowest possible mounting height: 70
Drill hole distance centrically: 10
Connectable conductor cross section solid-core: 0.324 mm²
Width/grid dimension: 206
Closing plate required: FALSE
Connection position: Above
Explosion-tested version 'Ex e': FALSE
Material insulation body: Other
Number of poles: 16
Operation temperature: -5…60 °C
Transparent: FALSE
Rated current In: 0.08

Datasheet for ABE7S16E2F0 - sub-base - soldered solid state output relay ABE7 - 16 inputs - 115 V AC - Schneider Electric - ABE7S16E2F0

Download
