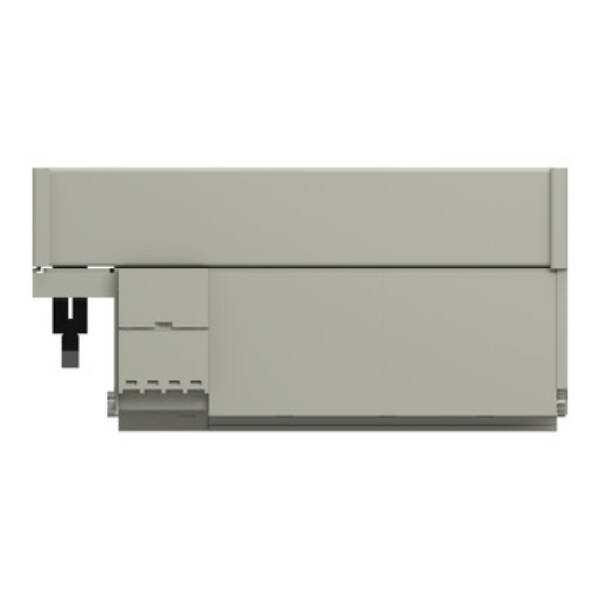

This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7R16S111

Weight (kg)

0.35 kg

Type

Advantys Telefast ABE 7

Type of electrical connection 2

Plug-in connection

Colour

Grey

Rated voltage

24

Type of electrical connection 1

Screw connection

Number of clamp positions per pole

2

Inflammability class of insulation material according to with UL94

Other

Drill hole distance centrically

10

Mounting method

DIN rail (top hat rail) 35 mm

Halogen free

FALSE

Connectable conductor cross section solid-core

0.324 Square millimetre

Closing plate required

FALSE

Explosion-tested version 'Ex e'

FALSE

Material insulation body

Thermoplastic

Number of poles

16

Operating temperature

-5…60 Degrees celsius

Transparent

FALSE

Rated current In

0.09
