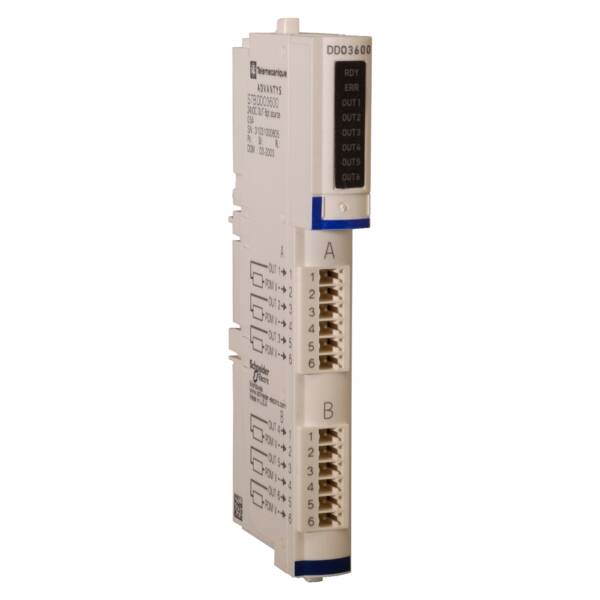

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard discrete output kit has 6 discrete outputs with solid state relay. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 90mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.114kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA1000. The kit includes STBXBA1000 base, STBDDO3600 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Brand

Schneider Electric

Range

Advantys STB

Part No

STBDDO3600K

Weight (kg)

0.14 kg

Type

Advantys STB

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

System accessory

TRUE

Digital inputs configurable

FALSE

Digital outputs configurable

TRUE

Performance level acc. EN ISO 13849-1

None

Permitted voltage at output

24 V

Permitted voltage at input

19.2…30 V

Radio standard GPRS

FALSE

Type of voltage (input voltage)

DC

Height

13.9

Fieldbus connection over separate bus coupler possible

TRUE

Time delay at signal exchange

0.715…0.955 ms

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

128.3

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Input current at signal 1

0.4

Supporting protocol for SafetyBUS p

FALSE

Output, current

0.5

Type of electric connection

Screw connection

Short-circuit protection, outputs available

TRUE

Voltage type of supply voltage

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Type of digital output

Other

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

TRUE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

TRUE

Front build in possible

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Degree of protection (IP)

IP20

Supporting protocol for CAN

TRUE

Type of output voltage

DC

Supporting protocol for INTERBUS

TRUE

IO link master

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

TRUE

Supporting protocol for MODBUS

TRUE

Number of digital outputs

6

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
