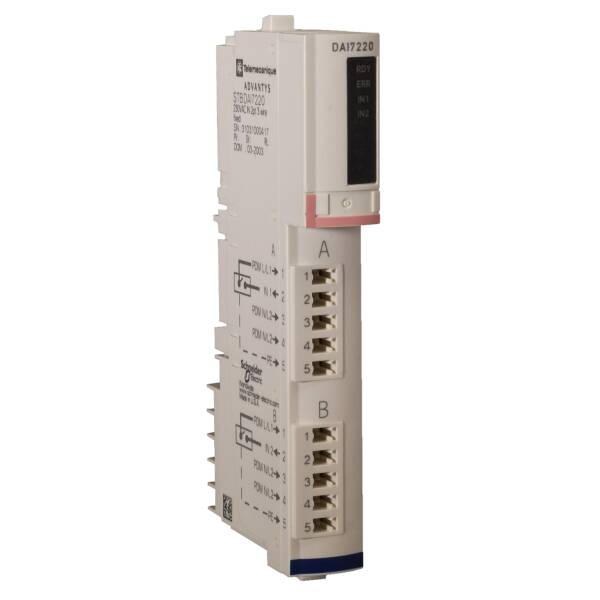

standard digital input kit - Modicon STB - 230 V AC - 2 I - Schneider Electric - STBDAI7220K
standard digital input kit - Modicon STB - 230 V AC - 2 I - Schneider Electric - STBDAI7220K

STBDAI7220K

standard digital input kit - Modicon STB - 230 V AC - 2 I - Schneider Electric - STBDAI7220K

Automation

List Price £68.03 +VAT

Our Price £54.42 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
Brand
Schneider Electric
Range
Advantys STB
Part No
STBDAI7220K
Weight (kg)
0.14 kg
Type
Advantys STB
Supporting protocol for SERCOS
FALSE
SIL according to IEC 61508
None
With optical interface
FALSE
System accessory
TRUE
Digital inputs configurable
FALSE
Digital outputs configurable
FALSE
Performance level acc. EN ISO 13849-1
None
Permitted voltage at input
-3…30 V
Radio standard GPRS
FALSE
Type of voltage (input voltage)
AC/DC
Fieldbus connection over separate bus coupler possible
TRUE
Height
18.4
Time delay at signal exchange
0.925…1.35 ms
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
125
Supporting protocol for AS-Interface Safety at Work
FALSE
Explosion safety category for dust
None
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Depth
65.1
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
TRUE
Supporting protocol for Foundation Fieldbus
FALSE
Input current at signal 1
2.5
Supporting protocol for SafetyBUS p
FALSE
Type of electric connection
Screw connection
Short-circuit protection, outputs available
FALSE
Voltage type of supply voltage
AC/DC
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Type of digital output
None
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for PROFIBUS
TRUE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Supply voltage AC 50 Hz
230 V
Supply voltage AC 60 Hz
230 V
Supporting protocol for TCP/IP
TRUE
Front build in possible
FALSE
Supporting protocol for KNX
FALSE
Degree of protection (IP)
IP20
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for CAN
TRUE
Supporting protocol for INTERBUS
TRUE
Type of output voltage
AC/DC
IO link master
FALSE
Rail mounting possible
FALSE
Supporting protocol for DeviceNet
TRUE
Supporting protocol for MODBUS
TRUE
Suitable for safety functions
FALSE
Supporting protocol for Data-Highway
FALSE
Number of digital inputs
2
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
FALSE

Datasheet for STBDAI7220K - standard digital input kit - Modicon STB - 230 V AC - 2 I - Schneider Electric - STBDAI7220K
