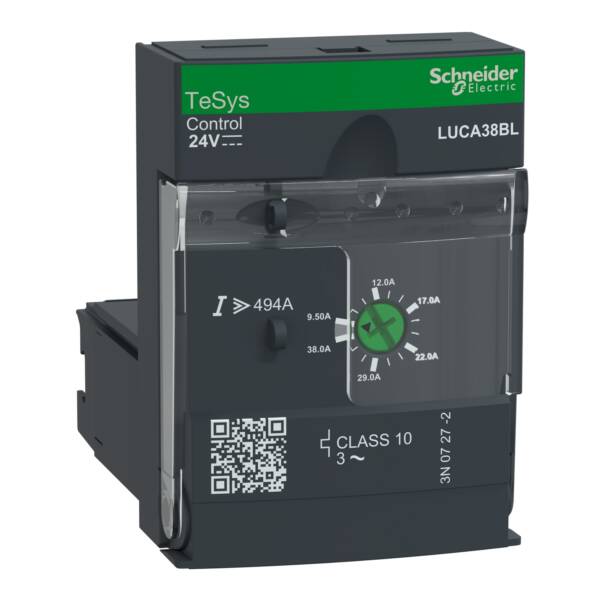

Standard control unit, TeSys U, 9.5-38A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA38BL
Standard control unit, TeSys U, 9.5-38A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA38BL

LUCA38BL

Standard control unit, TeSys U, 9.5-38A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA38BL

Control

List Price £161.07 +VAT

Our Price £120.80 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U standard control unit to be inserted in power bases LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 18.5kW@400V. It provides full protection to motors with a rated current Ir 9.5-38A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCA38BL
Weight (kg)
0.12 kg
Type
TeSys U
Width
45
With ground fault protection function
TRUE
Voltage type (supply voltage)
DC
Overload release current setting
9.5…38 Ampere
Operating voltage AC 50 Hz
690 Volt
Rated permanent current Iu
38
Operating voltage AC 60 Hz
690 Volt
Depth
60
Short-circuit release function
Undelayed
Type of motor protection
Thermal/magnetic release
Voltage type (operating voltage)
AC
Number of poles
3
External power supply required
TRUE
Height
66

Datasheet for LUCA38BL - Standard control unit, TeSys U, 9.5-38A, 3P motors, thermal magnetic protection, class 10, coil 24V DC - Schneider Electric - LUCA38BL

Download
