Solid state relay, 2 A, random switching, input 15...30 V DC, output 24...280 V AC - Schneider Electric - SSL1A12BDR

Solid state relay, 2 A, random switching, input 15...30 V DC, output 24...280 V AC - Schneider Electric - SSL1A12BDR

SSL1A12BDR

Solid state relay, 2 A, random switching, input 15...30 V DC, output 24...280 V AC - Schneider Electric - SSL1A12BDR

Control

~~List Price £12.32 +VAT~~

Our Price £9.24 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

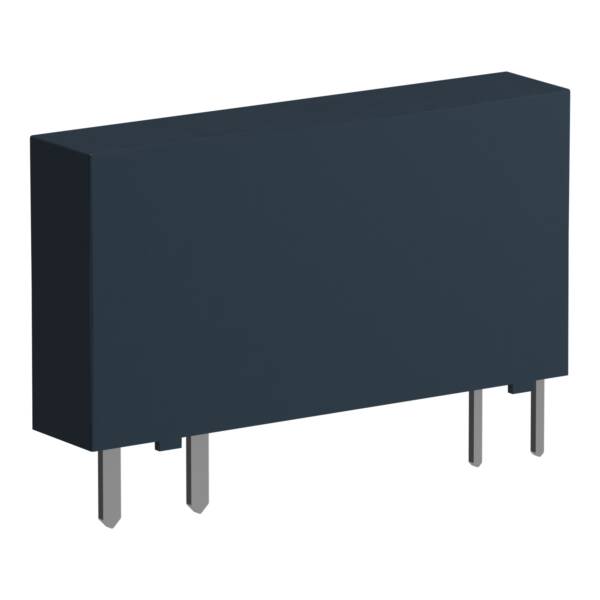

This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 15V to 30V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Solid State Relays
Part No: SSL1A12BDR
Weight (kg): 0.00 kg
Type: Harmony Solid State Relays
Rated control supply voltage Us at AC 50HZ: 24…280 V
Rated control supply voltage Us at AC 60HZ: 24…280 V
Operating voltage: 24…280 V
Number of phases: 1
Modular version: TRUE
Rated operation current Ie at AC-53a: 2
Rated operation current Ie at AC-51: 2
Rated operation current Ie at AC-53b: 2
Rated control supply voltage Us at DC: 15…30 V
Voltage type for actuating: AC/DC
Rated operation current Ie at AC-1: 2
Switching at zero-crossing: FALSE
Rated operation current Ie at AC-3: 2

Datasheet for SSL1A12BDR - Solid state relay, 2 A, random switching, input 15...30 V DC, output 24...280 V AC - Schneider Electric - SSL1A12BDR

Download
