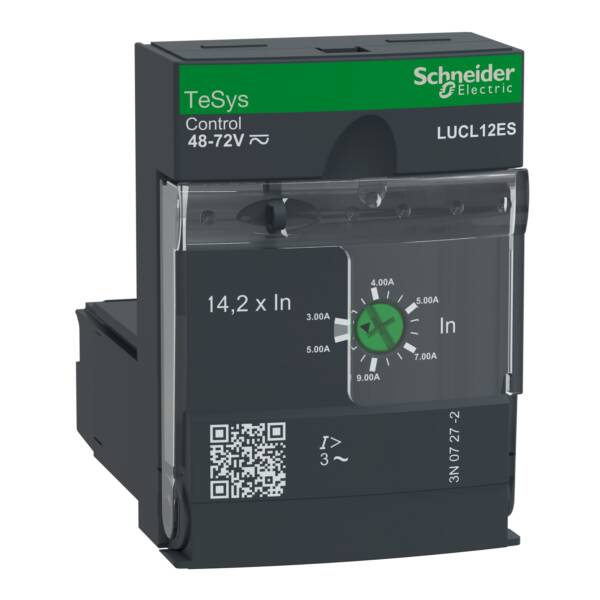

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 48-72V AC/DC - Schneider Electric - LUCL12ES

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 48-72V AC/DC - Schneider Electric - LUCL12ES

LUCL12ES

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 48-72V AC/DC - Schneider Electric - LUCL12ES

Control

~~List Price £105.90 +VAT~~

Our Price £79.43 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides short circuit protection to motors with a rated current In 3-12A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 48V AC / 48-72V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUCL12ES
Weight (kg): 0.13 kg
Type: TeSys U
Type of motor protection: Other
Rated control supply voltage Us at AC 50HZ: 48 V
Number of poles: 3
Rated control supply voltage Us at AC 60HZ: 48 V
Rated control supply voltage Us at DC: 48…72 V
Initial value of the undelayed short-circuit release - setting range: 43
Voltage type for actuating: AC/DC
End value adjustment range undelayed short-circuit release: 170
With ground fault protection function: FALSE
Rated permanent current Iu: 12
Short-circuit release function: Undelayed

Datasheet for LUCL12ES - Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 48-72V AC/DC - Schneider Electric - LUCL12ES

Download
