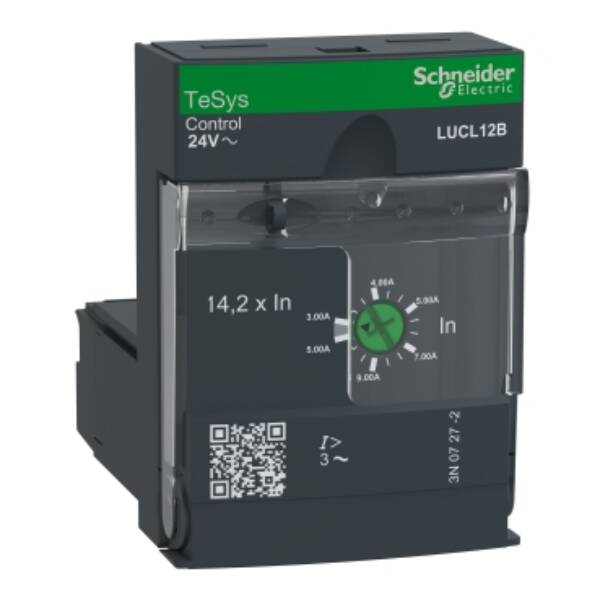

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL12B
Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL12B

LUCL12B

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL12B

Control

List Price £105.90 +VAT

Our Price £79.43 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides short circuit protection to motors with a rated current In 3-12A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCL12B
Weight (kg)
0.13 kg
Type
TeSys U
Type of motor protection
Other
Rated control supply voltage Us at AC 50HZ
24 V
Number of poles
3
Rated control supply voltage Us at AC 60HZ
24 V
Initial value of the undelayed short-circuit release - setting range
43
Voltage type for actuating
AC
End value adjustment range undelayed short-circuit release
170
With ground fault protection function
FALSE
Rated permanent current Iu
12
Short-circuit release function
Undelayed

Datasheet for LUCL12B - Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 24V AC - Schneider Electric - LUCL12B
