time delay relay 10 functions - 1 s..100 h - 12 V AC/DC - 1 OC - Schneider Electric - RE17RMJU

time delay relay 10 functions - 1 s..100 h - 12 V AC/DC - 1 OC - Schneider Electric - RE17RMJU

RE17RMJU

time delay relay 10 functions - 1 s..100 h - 12 V AC/DC - 1 OC - Schneider Electric - RE17RMJU

Control

~~List Price £58.78 +VAT~~

Our Price £44.09 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

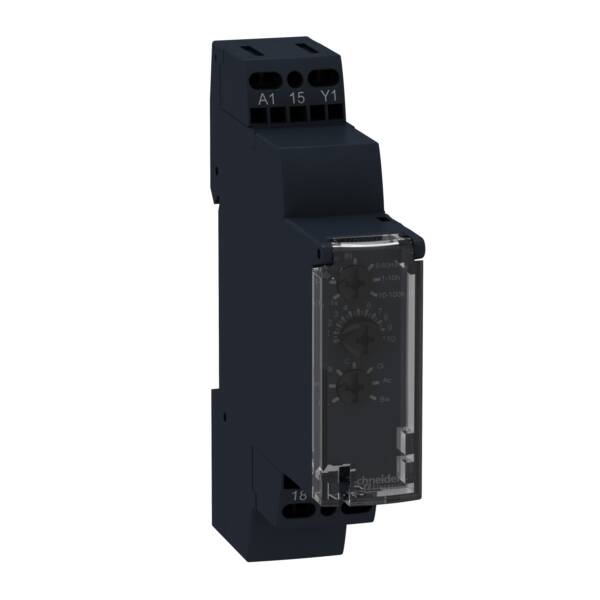

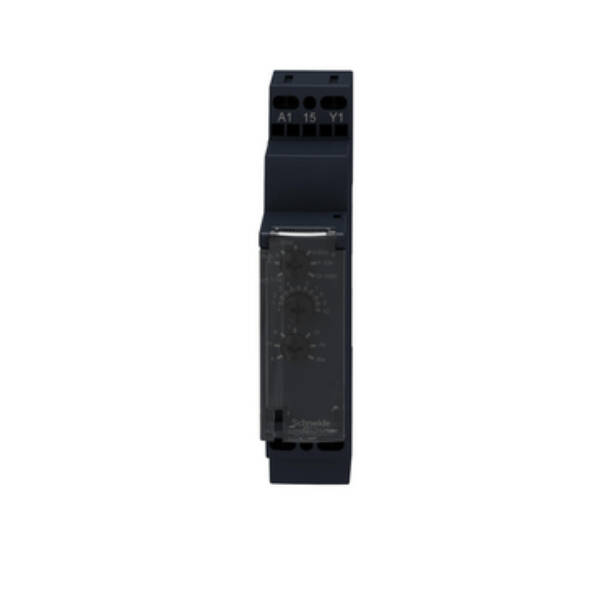

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V AC/DC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE17RMJU
Weight (kg): 0.08 kg
Type: Harmony Timer Relays
Type of electric connection: Screw connection
Function delay on de-energization: TRUE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pause, variable: TRUE
Clock function, starting with pulse, variable: TRUE
Number of outputs, undelayed, change-over contact: 1
Function floating contact on de-energization: TRUE
Suitable for front mounting: TRUE
Function pulse shaping: TRUE
Number of outputs, delayed, change-over contact: 1
Function delay-on energization: TRUE
Height: 90
Voltage type for actuating: AC/DC
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: TRUE
Width: 17.5
Rated control supply voltage Us at AC 50HZ: 12 V
Rated control supply voltage Us at AC 60HZ: 12 V
Function floating contact on energization: TRUE
Nominal current: 8
Depth: 72
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: FALSE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: TRUE
Rated control supply voltage Us at DC: 12 V
Function flashing, starting with pulse, fixed time: TRUE
Remote operation possible: FALSE
Time range: 0.1…360000 s
Suitable for remote control: FALSE

Datasheet for RE17RMJU - time delay relay 10 functions - 1 s..100 h - 12 V AC/DC - 1 OC - Schneider Electric - RE17RMJU
