LUCL12FU
LUCL12FU

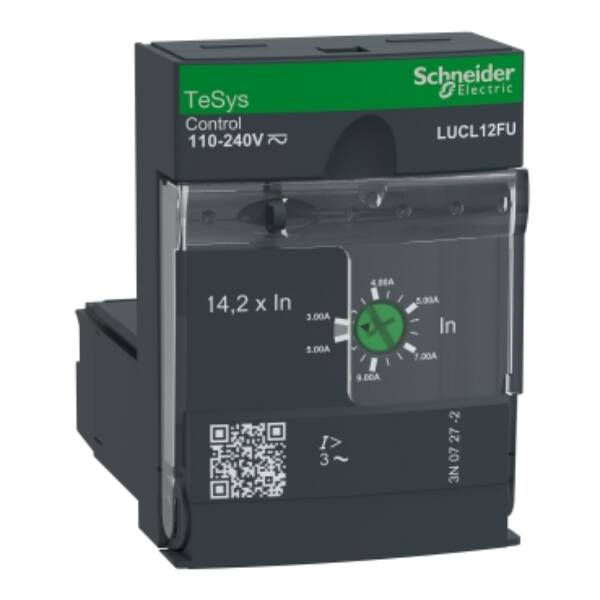

Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL12FU
Control
List Price £106.03
+VAT
Our Price £79.52
+VAT
SAVE 26% OFF List Price
Add to basket
Fast Track Delivery Product
Get in touch
Product description
Specifications
Downloads
TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides short circuit protection to motors with a rated current In 3-12A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LUCL12FU
Weight (kg)
0.13 kg
Type
TeSys U
Width
45
With ground fault protection function
FALSE
Voltage type (supply voltage)
AC/DC
Operating voltage AC 50 Hz
690 Volt
Rated permanent current Iu
12
Depth
60
Operating voltage AC 60 Hz
690 Volt
Short-circuit release function
Undelayed
Type of motor protection
Other
Voltage type (operating voltage)
AC
Number of poles
3
External power supply required
TRUE
Height
66
Datasheet for LUCL12FU - Standard control unit, TeSys U, 3-12A, 3P motors, magnetic protection, coil 110-240V AC/DC - Schneider Electric - LUCL12FU
Download
