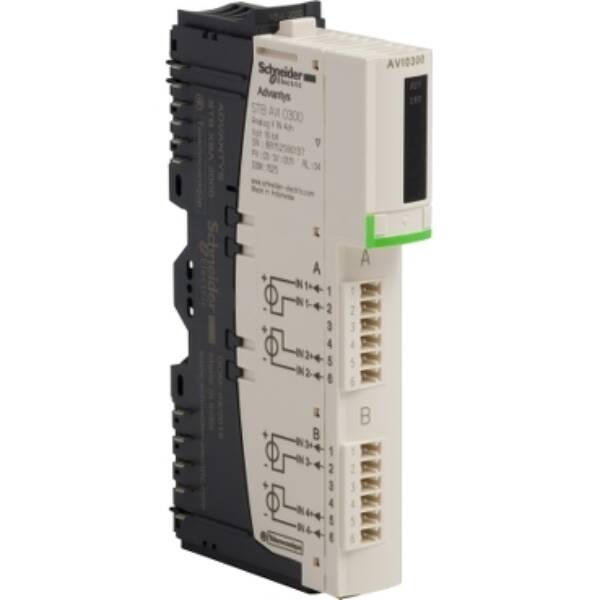

standard analog input kit STB - +/- 10 V - 4 I - 15 bits + sign - Schneider Electric - STBAVI0300K

standard analog input kit STB - +/- 10 V - 4 I - 15 bits + sign - Schneider Electric - STBAVI0300K

STBAVI0300K

standard analog input kit STB - +/- 10 V - 4 I - 15 bits + sign - Schneider Electric - STBAVI0300K

Automation

~~List Price £369.46 +VAT~~

Our Price £295.57 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

"This input kit is part of the Modicon STB range, an offer of modular distributed I/O." "This standard analog input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC)." "The kit has 4 analog inputs." 0 "Setting can be done via Advantys STB configuration software." "It weighs 0.11kg." 0 "It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications." "The kit includes STBXBA1000 base, STBAVI0300 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector." "The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network."

Brand: Schneider Electric
Range: Advantys STB
Part No: STBAVI0300K
Weight (kg): 0.15 kg
Type: Advantys STB
Supporting protocol for SERCOS: FALSE
Analogue inputs configurable: TRUE
Analogue outputs configurable: FALSE
SIL according to IEC 61508: None
System accessory: TRUE
Performance level according to EN ISO 13849-1: None
Certified for UL hazardous location division 2: FALSE
Radio standard GPRS: FALSE
Fieldbus connection over separate bus coupler possible: TRUE
Height: 18.4
Supporting protocol for INTERBUS-Safety: FALSE
Certified for UL hazardous location class I: FALSE
Certified for UL hazardous location class III: FALSE
Certified for UL hazardous location division 1: FALSE
Certified for UL hazardous location class II: FALSE
Width: 128.3
Supporting protocol for EtherCAT: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: Other
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 70
Explosion safety category for gas: Other
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Certified for UL hazardous location group C (ethylene): FALSE
Certified for UL hazardous location group A (acetylene): FALSE
Certified for UL hazardous location group B (hydrogen): FALSE
Certified for UL hazardous location group F (carbonaceous dusts): FALSE
Certified for UL hazardous location group G (non-conductive dusts): FALSE
Certified for UL hazardous location group D (propane): FALSE
Certified for UL hazardous location group E (metal dusts): FALSE
Input, thermocouple: TRUE
Input signal, configurable: TRUE
Type of electric connection: Screw connection
Supporting protocol for SafetyBUS p: FALSE
Voltage type (supply voltage): DC
Input, resistor: FALSE
Supporting protocol for PROFINET CBA: FALSE
Input, resistance thermometer: TRUE
Input, current: FALSE
Supporting protocol for PROFINET IO: FALSE
Input, voltage: TRUE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Appendant operation agent (Ex ia): FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: FALSE
Front built-in possible: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Degree of protection (IP): IP20
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Output, voltage: FALSE
Output signal configurable: FALSE
Supporting protocol for Modbus: FALSE
Suitable for safety functions: FALSE
Output, current: FALSE
Resolution of the analogue inputs: 15
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 Volt
Rack-assembly possible: TRUE
Number of analogue inputs: 4
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE

Datasheet for STBAVI0300K - standard analog input kit STB - +/- 10 V - 4 I - 15 bits + sign - Schneider Electric - STBAVI0300K

Download
