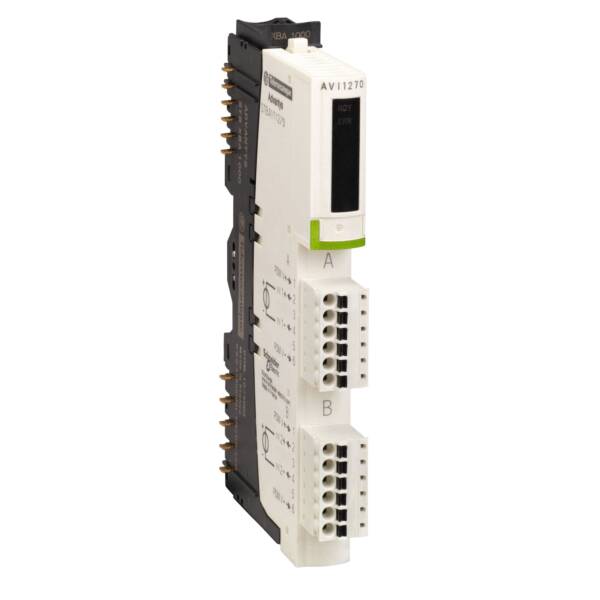

standard analog input kit - Modicon STB - +/- 10 V - 2 I -11 bits + sign - Schneider Electric - STBAVI1270K

standard analog input kit - Modicon STB - +/- 10 V - 2 I -11 bits + sign - Schneider Electric - STBAVI1270K

STBAVI1270K

standard analog input kit - Modicon STB - +/- 10 V - 2 I -11 bits + sign - Schneider Electric - STBAVI1270K

Automation

~~List Price £220.29 +VAT~~

Our Price £176.23 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

"This input kit is part of the Modicon STB range, an offer of modular distributed I/O." "This standard analog input kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC)." "The kit has 2 analog inputs." 0 "Setting can be done via Advantys STB configuration software." "It weighs 0.11kg." 0 "It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications." "The kit includes STBXBA1000 base, STBAVI1270 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector." "The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network."

Brand: Schneider Electric
Range: Advantys STB
Part No: STBAVI1270K
Weight (kg): 0.14 kg
Type: Advantys STB
Supporting protocol for SERCOS: FALSE
Analogue inputs configurable: TRUE
Analogue outputs configurable: FALSE
SIL according to IEC 61508: None
System accessory: TRUE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Fieldbus connection over separate bus coupler possible: TRUE
Height: 18.4
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 128.3
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: Other
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 70
Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Input, thermocouple: FALSE
Input signal, configurable: TRUE
Supporting protocol for SafetyBUS p: FALSE
Type of electric connection: Screw connection
Voltage type of supply voltage: AC/DC
Input, resistor: FALSE
Input, resistance thermometer: FALSE
Supporting protocol for PROFINET CBA: FALSE
Input, current: TRUE
Supporting protocol for PROFINET IO: FALSE
Input voltage: FALSE
Supporting protocol for PROFIsafe: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Appendant operation agent (Ex ia): FALSE
Front build in possible: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Degree of protection (IP): IP20
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: FALSE
Rail mounting possible: TRUE
Output voltage: FALSE
Supporting protocol for DeviceNet: FALSE
Resolution of the analogue outputs: 11
Output signal configurable: FALSE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: FALSE
Resolution of the analogue inputs: 11
Output, current: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 10 V
Number of analogue inputs: 2
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE

Datasheet for STBAVI1270K - standard analog input kit - Modicon STB - +/- 10 V - 2 I -11 bits + sign - Schneider Electric - STBAVI1270K

Download
