NSYTRR22PE

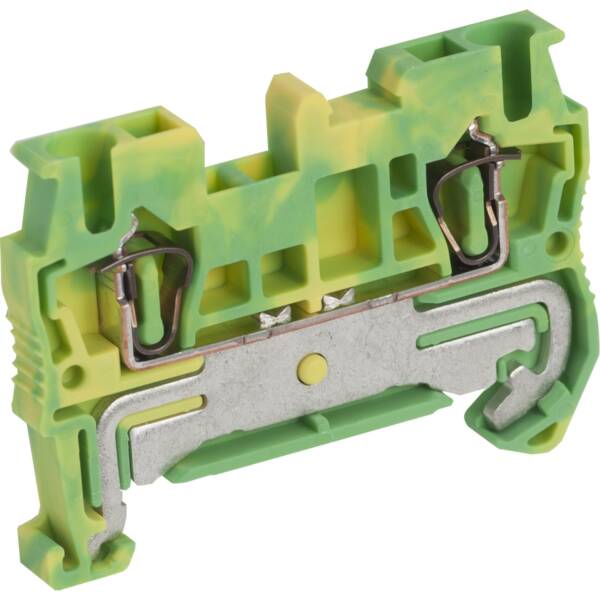

SPRING TERMINAL, PROTECTIVE EARTH, 2 POINTS, 2,5MM², GREEN-YELLOW - Schneider Electric - NSYTRR22PE

Enclosures

~~List Price £2.70 +VAT~~

Our Price £2.03 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 mm² nominal cross section. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. Multi standards certified (UL, CSA, VDE, GL, DNV). Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRR22PE
Weight (kg): 0.01 kg
Type: Linergy TR terminals blocks
Colour: Green/yellow
Length: 48.5
Type of electrical connection 2: Spring clamp connection
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Inflammability class of insulation material acc. with UL94: V0
Height at lowest possible mounting height: 36.5
Mounting method: DIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core: 0.08…4 mm²
Width/grid dimension: 5.2
PEN function possible: FALSE
Closing plate required: TRUE
Connection position: Above
Connectable conductor cross section fine-strand with cable end sleeve: 0.08…2.5 mm²
Connectable conductor cross section multi-wired: 0.08…2.5 mm²
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Number of clamp positions per level: 2
Connectable conductor cross section fine-strand without cable end sleeve: 0.08…2.5 mm²
