ABS box IP66 IK07 RAL7035 Int.H275W225D80 Ext.H291W241D88 Opaque cover H20 - Schneider Electric - NSYTBS29248

ABS box IP66 IK07 RAL7035 Int.H275W225D80 Ext.H291W241D88 Opaque cover H20 - Schneider Electric - NSYTBS29248

NSYTBS29248

ABS box IP66 IK07 RAL7035 Int.H275W225D80 Ext.H291W241D88 Opaque cover H20 - Schneider Electric - NSYTBS29248

Enclosures

~~List Price £39.61 +VAT~~

Our Price £29.71 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

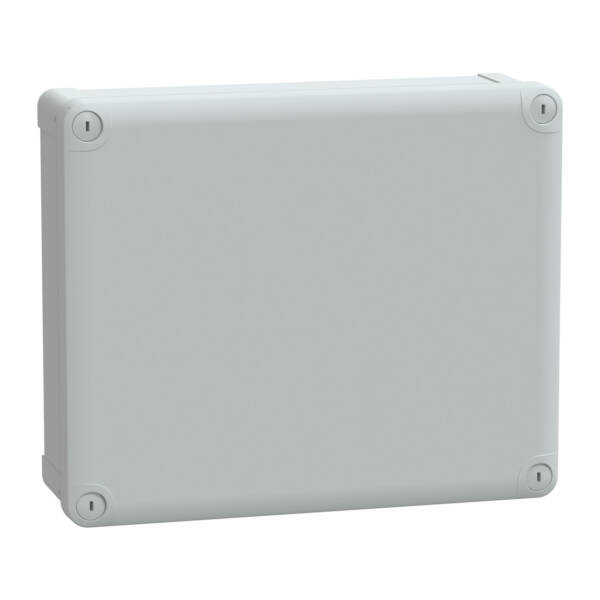

PanelSeT TBS industrial ABS box with opaque cover H20. Int is 275 x 225 x 160 mm. Ext is 291 x 241 x 88 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Brand: Schneider Electric
Range: Enclosures
Part No: NSYTBS29248
Weight (kg): 0.86 kg
Type: Enclosures
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
Suitable for lightning protection: TRUE
RAL-number: 7035
Type of door: None
Height: 291
Transparent cover/door: FALSE
Degree of protection (IP): IP66
Internal depth: 80
Cover model: Closed
Plate thickness cabinet: 2.4
Plate thickness door/cover: 2.8
Colour: Grey
Circuit integrity: None
Width: 241
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 88
With lock: FALSE
Impact strength: IK07

Datasheet for NSYTBS29248 - ABS box IP66 IK07 RAL7035 Int.H275W225D80 Ext.H291W241D88 Opaque cover H20 - Schneider Electric - NSYTBS29248

Download
