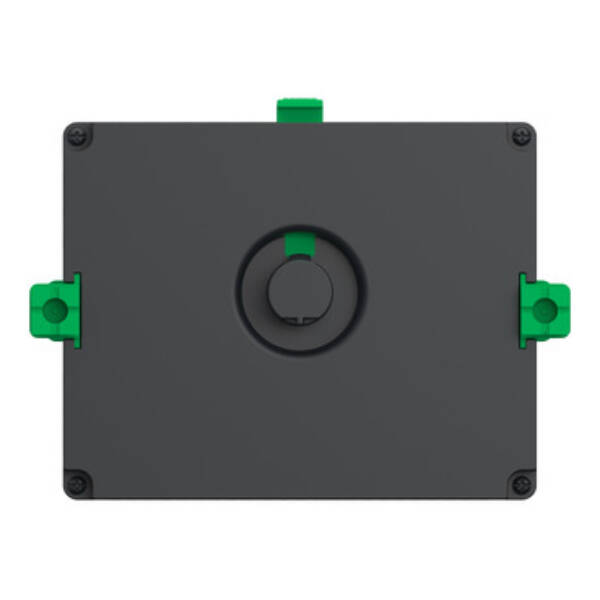

This product is part of Schneider Electric's Harmony ST6 range, a spare part of the HMIST6. This is a rear module for the touch panel screens of the Harmony ST6 range. It runs on 800MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc. It comes with a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. It also has 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 145mm (width) x 108mm (height) x 41mm (depth) and weighs 0.27Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The HMISTM6 Faceless HMI can be used for applications that doesn't need an operator screen full time.

Brand

Schneider Electric

Range

Harmony ST6

Part No

HMISTM6B

Weight (kg)

0.44 kg

Type

Harmony ST6

With message indication

FALSE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

2

Useful project memory/user memory

1000000

With numeric keyboard

FALSE

With alpha numeric keyboard

FALSE

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

FALSE

Process value representation (output) possible

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

With printer output

FALSE

Process default value (input) possible

FALSE

With recipes

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Degree of protection (IP), front side

IP20

Radio standard UMTS

FALSE

Additional software components, loadable

FALSE

Touch technology

Resistive touch

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

TRUE

Operation temperature

0…50 °C

Built-in depth

41.4

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

FALSE

Suitable for safety functions

FALSE

Width of the front

145.6

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Height of the front

108.2

Supply voltage DC

0…24 V

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1
