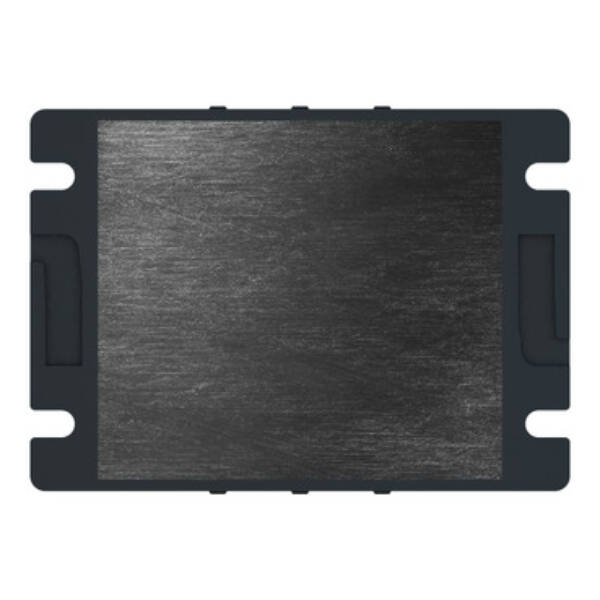

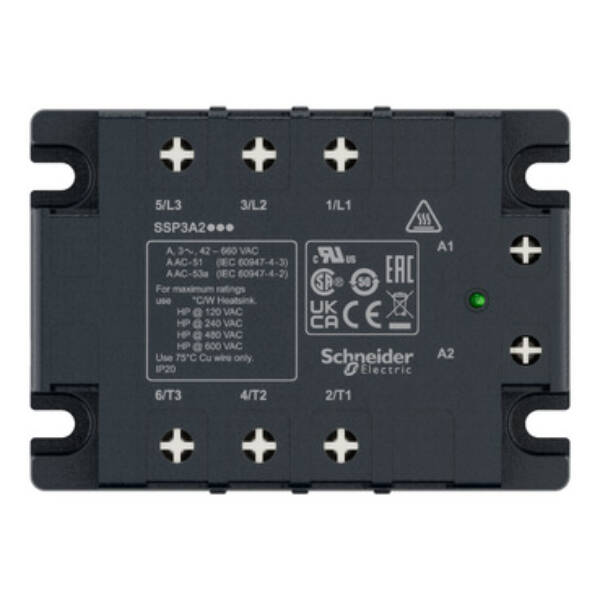

This interface relay belongs to the Schneider Electric's Harmony Solid State relays range. This Harmony SSP mount is a 3-phase relay, with random voltage switching, ideal for inductive loads. It is rated 25A, is controlled with a 4V to 32V DC input and has a rated load voltage of 42V to 660V AC. It is silent, reliable, and has longer operational life thanks to the absence of moving contacts. It has a visual LED indicator showing the status of its input. The interface relay socket connection is by screw connector type. Its dimensions are 104mm (width) x 74.6mm (height) x 41mm (depth) and weighs 0.37 Kg. It comes with IP20 degree of protection. Its design fits industrial machines, packaging, textiles, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, and lighting controls. This product conforms to IEC/EN (62314, 60947-4-2, 60947-4-3), UL 508, C22.2 No 14 standards and certifications like CE, UL, EAC, CSA, UKCA, ROHS and REACH. The SSP3 comes readily equipped with a thermal pad. 0 It is designed for panel mounting by 4 fastener screws. Solid State relays are silent and reliable thanks to the absence of moving contacts which in turn provides longer operational lifecycle. 0 0

Brand

Schneider Electric

Range

Harmony Solid State Relays

Part No

SSP3A225BDRT

Weight (kg)

0.39 kg

Type

Harmony Solid State Relays

Number of phases

3

Modular version

FALSE

Voltage type for actuating

DC

Height

74.6

Rated operation current Ie at AC-1

25

Degree of protection (IP)

IP20

Width

104

Operating voltage AC 50 Hz

42…660 Volt

Depth

41

Operating voltage AC 60 Hz

42…660 Volt

Rated operation current Ie at AC-53a

5

Rated operation current Ie at AC-51

25

Rated control supply voltage DC

4…32 Volt

Switching at zero-crossing

FALSE
