Solid state modular relay, 12 A, DC switching, input 4...32 V DC, output 1…60 V DC - Schneider Electric - SSM1D212BD

Solid state modular relay, 12 A, DC switching, input 4...32 V DC, output 1…60 V DC - Schneider Electric - SSM1D212BD

SSM1D212BD

Solid state modular relay, 12 A, DC switching, input 4...32 V DC, output 1…60 V DC - Schneider Electric - SSM1D212BD

Control

~~List Price £44.31 +VAT~~

Our Price £33.23 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

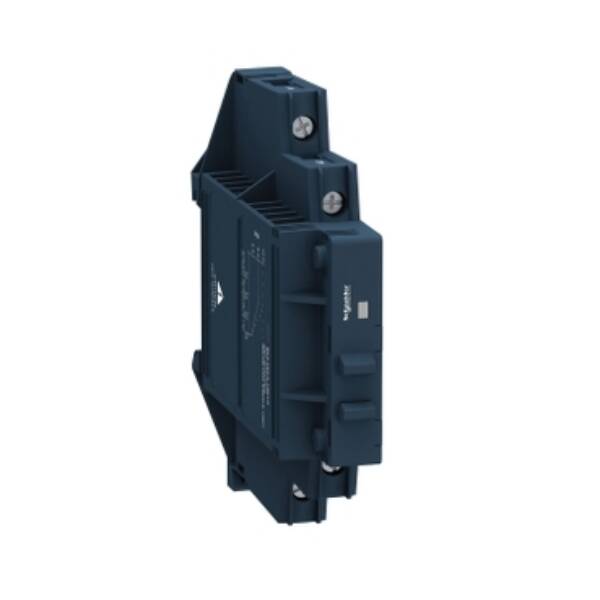

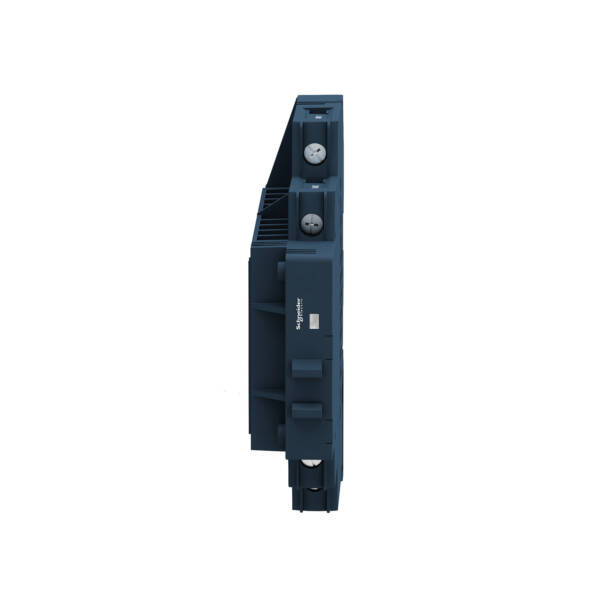

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Solid State Relays
Part No: SSM1D212BD
Weight (kg): 0.09 kg
Type: Harmony Solid State Relays
Operating voltage: 1…60 V
Number of phases: 1
Modular version: TRUE
Rated operation current Ie at AC-53a: 12
Rated operation current Ie at AC-51: 12
Rated operation current Ie at AC-53b: 12
Voltage type for actuating: AC/DC
Rated operation current Ie at AC-1: 12
Rated control supply voltage Us at DC: 4…32 V
Switching at zero-crossing: FALSE
Rated operation current Ie at AC-3: 12

Datasheet for SSM1D212BD - Solid state modular relay, 12 A, DC switching, input 4...32 V DC, output 1…60 V DC - Schneider Electric - SSM1D212BD
