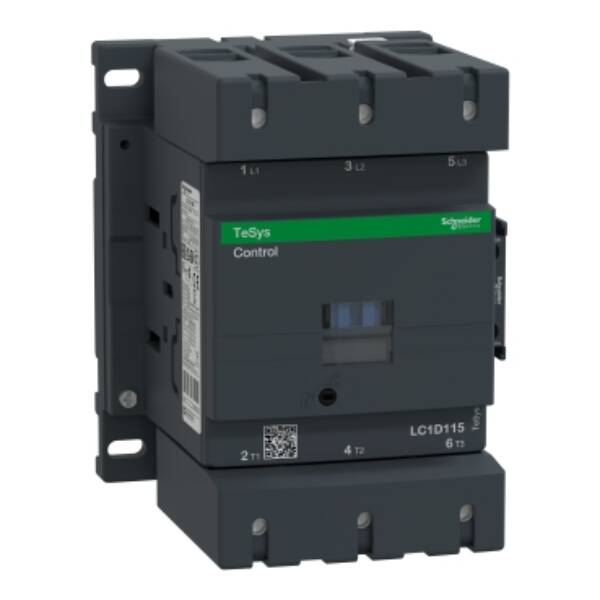

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil - Schneider Electric - LC1D115D7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil - Schneider Electric - LC1D115D7

LC1D115D7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil - Schneider Electric - LC1D115D7

Control

~~List Price £548.27 +VAT~~

Our Price £411.20 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"TeSys Deca contactor, 3 poles(3NO) for category AC-3 applications up to 115A @440V." "It provides with 42V 50/60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals." It procures high reliability and durability with 8 Mcycles mechanical durability and 0.95 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. "Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C." The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC1D115D7
Weight (kg): 2.49 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Width: 120
Rated control supply voltage AC 50 Hz: 42 Volt
Rated control supply voltage AC 60 Hz: 42 Volt
Rated operation power at AC-3, 400 V: 55
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Modular version: FALSE
Operating voltage AC 50 Hz: 440 Volt
Depth: 136
Operating voltage AC 60 Hz: 440 Volt
Rated operation current Ie at AC-1, 400 V: 200
Voltage type for actuating: AC
Height: 158
Rated operation current Ie at AC-4, 400 V: 38
Rated operation current Ie at AC-3, 400 V: 115
Rated operation power at AC-4, 400 V: 18.5

Datasheet for LC1D115D7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 42 V AC 50/60 Hz coil - Schneider Electric - LC1D115D7

Download
