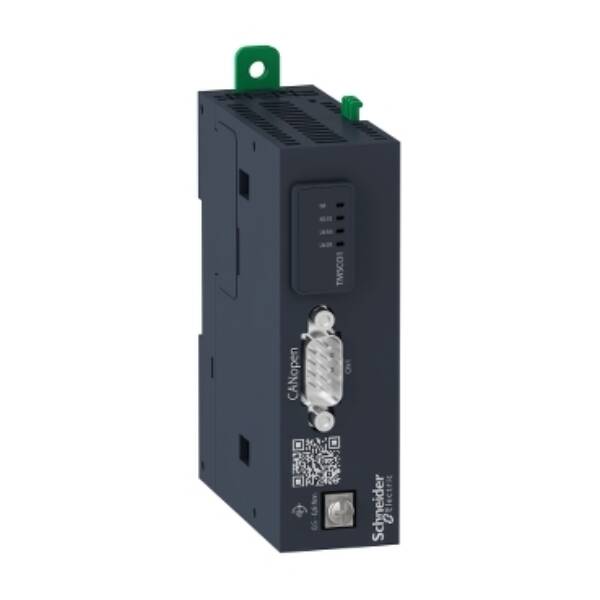

Smart communication module, Modicon M262, CANopen, 1 SubD9 - Schneider Electric - TMSCO1
Smart communication module, Modicon M262, CANopen, 1 SubD9 - Schneider Electric - TMSCO1

TMSCO1

Smart communication module, Modicon M262, CANopen, 1 SubD9 - Schneider Electric - TMSCO1

Automation

List Price £269.42 +VAT

Our Price £215.54 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This smart communication module for Modicon M262 logic/motion controllers is designed to provide 1 CANopen master access to the controllers. TMSCO1 smart communication module integrates M262 controllers in CANopen architectures, ensures communication with devices. It figures one CANopen port for CANopen master communication and supports up to 63 slaves. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. CANopen link can be configured between 20kbps and 1Mbit/s and supports up to 63 slaves. It is possible to connect one CANopen smart communication modules on a logi/motion controller, the power supply is embedded on the communication bus. It measures 30mm width, 88mm depth, and 100mm height. It weighs 0.150kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSCO1 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.
Brand
Schneider Electric
Range
Logic/Motion controller Modicon M262
Part No
TMSCO1
Weight (kg)
0.25 kg
Type
Logic/Motion controller Modicon M262
Supporting protocol for SERCOS
FALSE
SIL according to IEC 61508
None
With optical interface
FALSE
Transmission rate
1000
Performance level acc. EN ISO 13849-1
None
With potential separation
FALSE
Radio standard GPRS
FALSE
Height
100
Supporting protocol for INTERBUS-Safety
FALSE
Width
30
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
88.3
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for PROFIBUS
FALSE
Appendant operation agent (Ex ia)
FALSE
Radio standard WLAN 802.11
FALSE
Type of data transmission
Module rack extension
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
TRUE
Appendant operation agent (Ex ib)
FALSE
IO link master
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for DeviceNet
FALSE
Suitable for safety functions
FALSE
Supporting protocol for MODBUS
TRUE
Supporting protocol for Data-Highway
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE

Datasheet for TMSCO1 - Smart communication module, Modicon M262, CANopen, 1 SubD9 - Schneider Electric - TMSCO1
