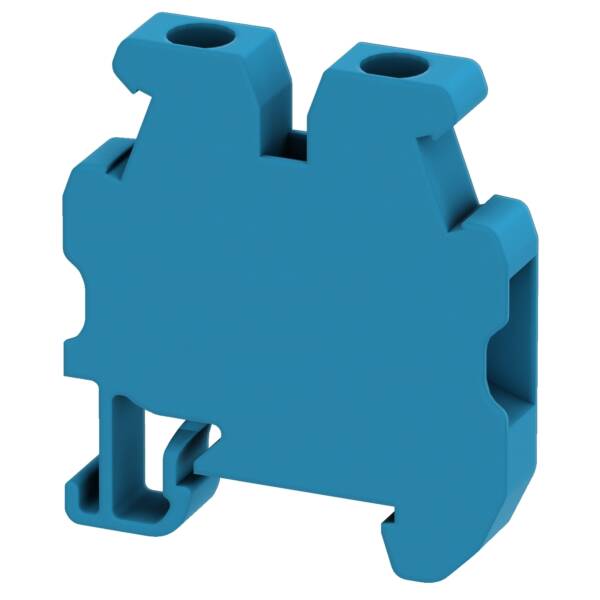

Linergy TR is terminal block for Miniature passthrough type. It belongs to linergy Miniature passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has Blue surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE). It is compliant with Green Premium (RoHS/REACH).

Brand

Schneider Electric

Range

Linergy TR terminals blocks

Part No

NSYTRV22MBL

Weight (kg)

0.00 kg

Type

Linergy TR terminals blocks

Colour

Blue

Type of electrical connection 2

Screw connection

Number of levels

1

Type of electrical connection 1

Screw connection

Rated voltage

500

Width

5.2

Internally connected stages

FALSE

Inflammability class of insulation material according to with UL94

V0

Mounting method

DIN rail (top hat rail) 15 mm

Connectable conductor cross section solid-core

0.2…4 Square millimetre

Closing plate required

TRUE

Depth

30

Connectable conductor cross section fine-strand with cable end sleeve

0.2…2.5 Square millimetre

Connectable conductor cross section multi-wired

0.2…2.5 Square millimetre

Explosion-tested version 'Ex e'

TRUE

Material insulation body

Thermoplastic

Operating temperature

-40…130 Degrees celsius

Height

34

Number of clamp positions per level

2

Connectable conductor cross section fine-strand without cable end sleeve

0.2…2.5 Square millimetre

Suitable for conductor material

Aluminium/copper

Rated current In

24
