"PanelSet S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm." - Schneider Electric - NSYS3X5420T

"PanelSet S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm." - Schneider Electric - NSYS3X5420T

NSYS3X5420T

SPACIAL S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm. - Schneider Electric - NSYS3X5420T

Enclosures

~~List Price £432.23 +VAT~~

Our Price £324.17 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

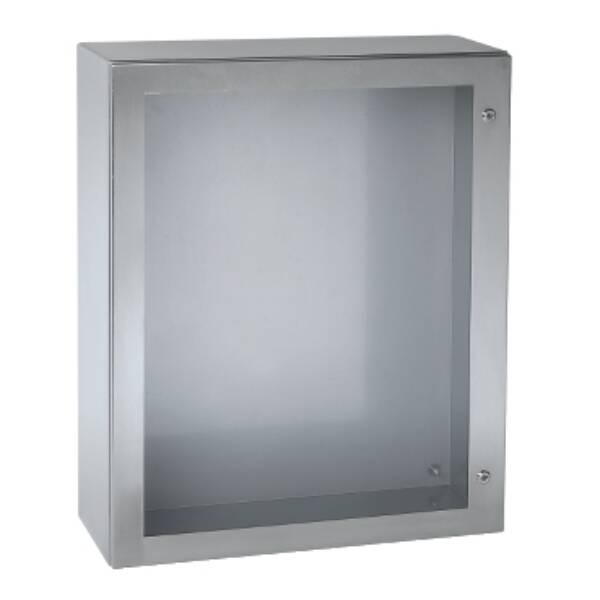

"PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK08 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 500mm, 400mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a glazed door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door is made of Securit glass and can be removed for maintenance purposes" "The net weight of the enclosure is 7,842kg"

Brand: Schneider Electric
Part No: NSYS3X5420T
Weight (kg): 7.84 kg
With mounting plate: FALSE
With glazed door: TRUE
Wall fastening possible: TRUE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 500
Degree of protection (IP): IP55
Pitched roof: FALSE
Colour: Stainless steel
Width: 400
Surface finishing: Other
Material: Stainless steel
Number of doors: 1
Suitable for outdoor set-up: FALSE
Number of locks: 1
Material quality: Stainless steel V4A
Depth: 200
Wall build in: FALSE
Mounting plate depth-adjustable: FALSE
Impact strength: IK08
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
Pole fastening: FALSE
With backside door: FALSE
Floor installation possible: FALSE

Datasheet for NSYS3X5420T - "PanelSet S3X stainless 304L, Scotch Brite® finish, H500xW400xD200 mm." - Schneider Electric - NSYS3X5420T
