NSYTRV62TT

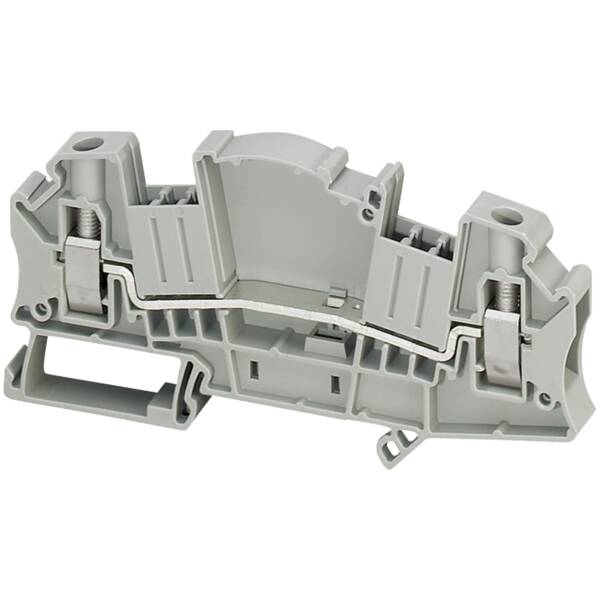

SCREW TERMINAL, FEED THROUGH, MEASURING TRANSDUCER, 2 POINTS, 6MM², G - Schneider Electric - NSYTRV62TT

Enclosures

~~List Price £8.77 +VAT~~

Our Price £6.58 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1000V conforming to EN/IEC 60947-7-1. The rated current is 30A conforming to EN/IEC 60947-7-1 and 30A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRV62TT
Weight (kg): 0.02 kg
Type: Linergy TR terminals blocks
Length: 100.8
Type of electrical connection 2: Screw connection
Colour: Grey
Number of levels: 1
Rated voltage: 500
Type of electrical connection 1: Screw connection
Internally connected stages: FALSE
Inflammability class of insulation material acc. with UL94: V0
Height at lowest possible mounting height: 49.6
Mounting method: DIN rail (top hat rail) 35 mm
Width/grid dimension: 8.2
Connectable conductor cross section solid-core: 0.2…10 mm²
Closing plate required: TRUE
Connectable conductor cross section fine-strand with cable end sleeve: 0.2…6 mm²
Connection position: Inclined
Explosion-tested version 'Ex e': FALSE
Connectable conductor cross section multi-wired: 0.2…10 mm²
Material insulation body: Thermoplastic
Operation temperature: -40…130 °C
Connectable conductor cross section fine-strand without cable end sleeve: 0.2…10 mm²
Number of clamp positions per level: 2
Rated current In: 30
