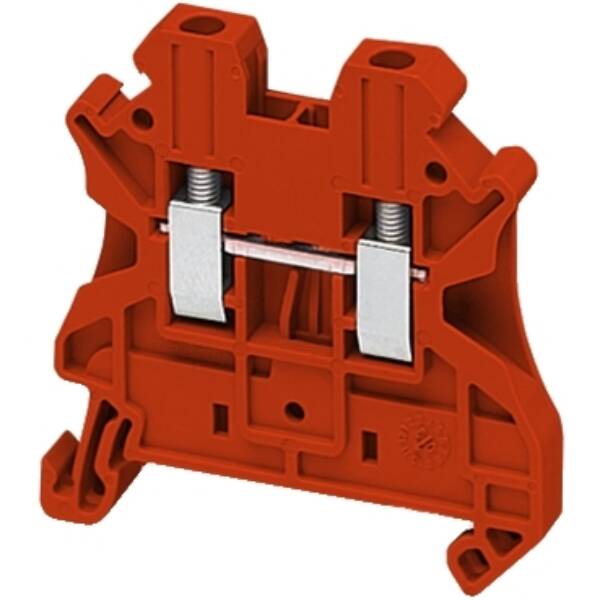

NSYTRV22RD

SCREW TERMINAL, FEED THROUGH, 2 POINTS, 2,5MM² , RED - Schneider Electric - NSYTRV22RD

Enclosures

~~List Price £1.19 +VAT~~

Our Price £0.89 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/UL. It has red surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRV22RD
Weight (kg): 0.01 kg
Type: Linergy TR terminals blocks
Number of levels: 1
Colour: Red
Type of electrical connection 2: Screw connection
Width: 5.2
Rated voltage: 1000
Type of electrical connection 1: Screw connection
Internally connected stages: FALSE
Inflammability class of insulation material according to with UL94: V0
Mounting method: DIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core: 0.14…4 Square millimetre
Depth: 47.7
Closing plate required: TRUE
Connectable conductor cross section fine-strand with cable end sleeve: 0.2…2.5 Square millimetre
Explosion-tested version 'Ex e': TRUE
Connectable conductor cross section multi-wired: 0.14…4 Square millimetre
Material insulation body: Thermoplastic
Height: 47.5
Operating temperature: -40…130 Degrees celsius
Connectable conductor cross section fine-strand without cable end sleeve: 0.14…4 Square millimetre
Number of clamp positions per level: 2
Suitable for conductor material: Aluminium/copper
Rated current In: 24
