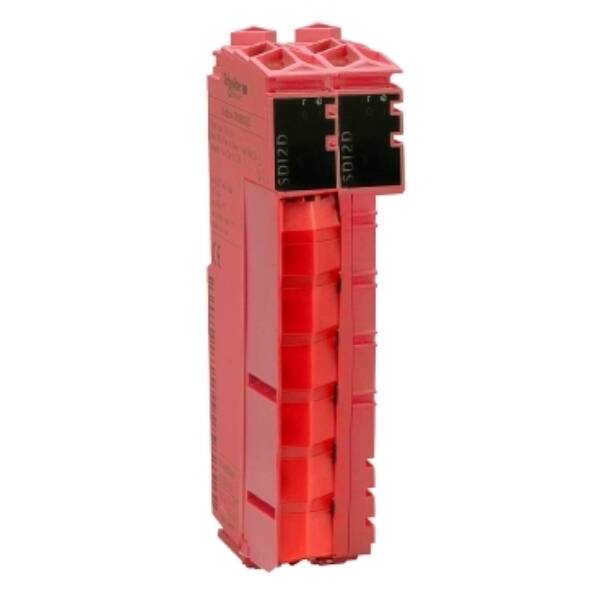

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This Safety discrete IO module provides 6 inputs, 24V DC, sink and 2 outputs, 24V DC, 500mA. There is an isolation between channel and bus at 500V AC. This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat. 4, PL e, SIL CL3. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. Its housing colour is red. It weighs 0.066kg. It measure 75mm deep, 25mm wide, 99mm high. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM5CSLC safety logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SDM8TBFS

Weight (kg)

0.07 kg

Type

Modicon TM5 IP20 modular I/O system

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

3

With optical interface

FALSE

System accessory

FALSE

Permitted voltage at output

20.4…28.8 Volt

Performance level according to EN ISO 13849-1

Level e

Certified for UL hazardous location division 2

FALSE

Permitted voltage at input

20.4…28.8 Volt

Radio standard GPRS

FALSE

Type of voltage (input voltage)

DC

Height

30

Fieldbus connection over separate bus coupler possible

FALSE

Time delay at signal change

150 Millisecond

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

60

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

100

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Input current at signal 1

2.48

Output current

500

Type of electric connection

Other

Supporting protocol for SafetyBUS p

FALSE

Short-circuit protection, outputs available

TRUE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Type of digital output

Transistor

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Front built-in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Type of output voltage

DC

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Number of digital outputs

2

Suitable for safety functions

TRUE

Supporting protocol for Modbus

FALSE

Number of digital inputs

6

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
