Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC - Schneider Electric - LZ8H2X4BD
Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC - Schneider Electric - LZ8H2X4BD

LZ8H2X4BD

Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC - Schneider Electric - LZ8H2X4BD

Control

List Price £168.46 +VAT

Our Price £126.35 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

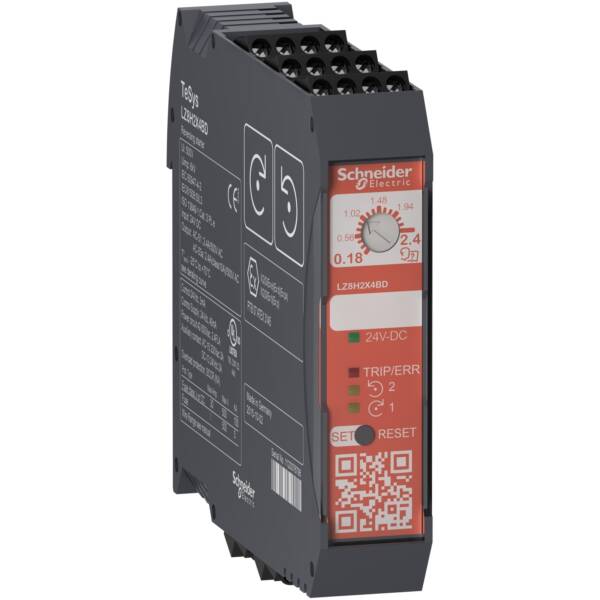

TeSys H ultra compact reverse safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
Brand
Schneider Electric
Range
TeSys Hybrid
Part No
LZ8H2X4BD
Weight (kg)
0.27 kg
Type
TeSys Hybrid
Type of electrical connection of main circuit
Screw connection
Number of indicator lights
4
Rated operation power at AC-3, 400 V
0.75
Supporting protocol for SERCOS
FALSE
Rated operation current Ie
2.4
External reset possible
TRUE
Overload release current setting
0.18…2.4 A
Ambient temperature, upper operating limit
70
With transformer
FALSE
Rated operation current at AC-3, 400 V
2.4
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Temperature compensated overload protection
TRUE
Height
106.5
Voltage type for actuating
DC
Supporting protocol for INTERBUS-Safety
FALSE
Width
22.6
Release class
CLASS 10
Supporting protocol for AS-Interface Safety at Work
FALSE
Depth
113.4
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Rated operation power at AC-3, 230 V, 3-phase
0.37
Supporting protocol for ASI
FALSE
Kind of motor starter
Reversing starter
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Degree of protection (IP)
IP20
Supporting protocol for CAN
FALSE
Supporting protocol for INTERBUS
FALSE
Rail mounting possible
TRUE
Supporting protocol for DeviceNet
FALSE
Supporting protocol for MODBUS
FALSE
Supporting protocol for Data-Highway
FALSE
Suitable for emergency stop
TRUE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
With fuse
FALSE
With short-circuit release
FALSE
Supporting protocol for SUCONET
FALSE
Rated power, 460 V, 60 Hz, 3-phase
0.75
Rated control supply voltage Us at DC
24 V
