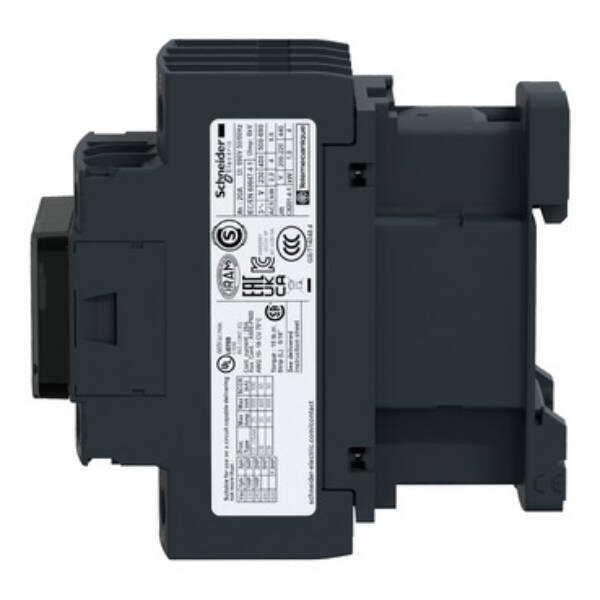

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 24 V DC coil - Schneider Electric - LC1D128BL
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 24 V DC coil - Schneider Electric - LC1D128BL

LC1D128BL

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 24 V DC coil - Schneider Electric - LC1D128BL

Control

List Price £91.11 +VAT

Our Price £68.33 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D128BL
Weight (kg)
0.56 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
2
Number of main contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
25
Rated control supply voltage Us at DC
24 V
Voltage type for actuating
DC

Datasheet for LC1D128BL - TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 24 V DC coil - Schneider Electric - LC1D128BL
