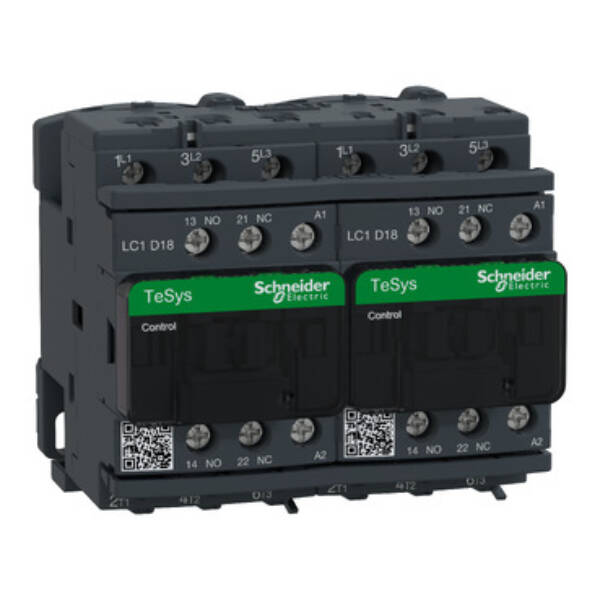

LC2D18E7

REVERSING CONTACTOR 575VAC 18A IEC - Schneider Electric - LC2D18E7

Control

~~List Price £188.12 +VAT~~

Our Price £141.09 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 18A/440V AC-3/3e (7.5kW@400V). It provides 48V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D18E7
Weight (kg): 0.82 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 7.5
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): AC
Rated operation power NEMA: 7.46
Rated operation current Ie at AC-1, 400 V: 32
Voltage type for actuating: AC
Height: 77
Rated operation current Ie at AC-3, 400 V: 18
Degree of protection (IP): IP20
Width: 90
Rated control supply voltage AC 50 Hz: 48 Volt
Rated control supply voltage AC 60 Hz: 48 Volt
Rail mounting possible: TRUE
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Operating voltage AC 50 Hz: 440 Volt
Depth: 86
Operating voltage AC 60 Hz: 440 Volt
Function: Reversing contactor
Degree of protection (NEMA): Other
