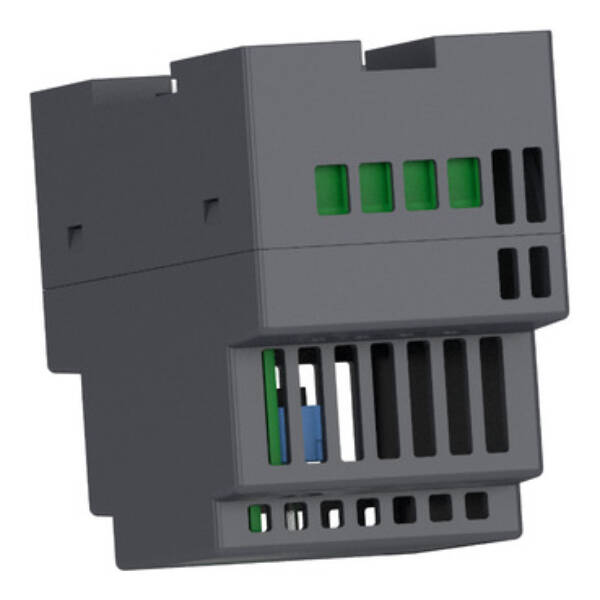

Regulated Power Supply, 100-240V AC, 12V 2.1 A, single phase, Modular - Schneider Electric - ABLM1A12021
Regulated Power Supply, 100-240V AC, 12V 2.1 A, single phase, Modular - Schneider Electric - ABLM1A12021

ABLM1A12021

Regulated Power Supply, 100-240V AC, 12V 2.1 A, single phase, Modular - Schneider Electric - ABLM1A12021

Control

£114.14 +VAT
Estimated delivery between 7-10 working days
Get in touch
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Brand
Schneider Electric
Range
Power supplies for industrial use, rail mounting
Part No
ABLM1A12021
Weight (kg)
0.17 kg
Type
Power supplies for industrial use, rail mounting
Direct mounting possible
TRUE
Type of electric connection
Screw connection
Voltage type of supply voltage
DC
Stabilized
TRUE
Built-in height
91
Modular version
TRUE
SIL according to IEC 61508
None
Short-circuit-proof
TRUE
Performance level acc. EN ISO 13849-1
None
Height
91
Power output
25
Nominal value output current 1
1
Rated supply voltage at AC 50 Hz
100…240 V
Rated supply voltage at AC 60 Hz
100…240 V
Degree of protection (IP)
IP20
Nominal value output voltage 1
12
Max. output current 1
1
Output voltage stabilized
TRUE
Width
36
Built-in width
36
Rail mounting possible
TRUE
Wall mounting possible
TRUE
Suitable for safety functions
FALSE
Depth
55.6
1st secondary output voltage
12 V
Secondary voltage adjustable
TRUE

Datasheet for ABLM1A12021 - Regulated Power Supply, 100-240V AC, 12V 2.1 A, single phase, Modular - Schneider Electric - ABLM1A12021
