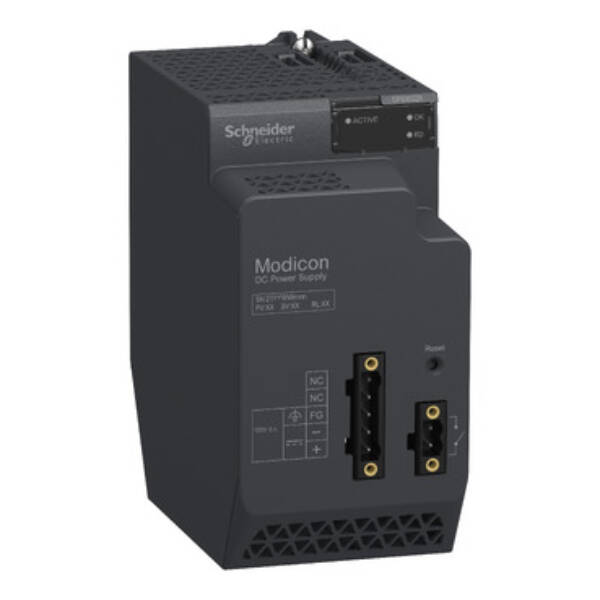

"This power supply for severe environments is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This power module provide the power supply for Modicon X80 rack and the modules installed on it." "This power supply has a power consumption of 40W." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection." "It is an IP20 rated product." "The power supply has a weigh of 0.610kg." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This power supply is compatible with Modicon M340 range." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXCPS3522H

Weight (kg)

0.62 kg

Type

Modicon X80 I/Os

Width

68

Suitable for safety functions

FALSE

Redundancy

FALSE

Input voltage AC 50 Hz

125 Volt

Depth

99

Output voltage AC 50 Hz

3.3…24 Volt

Input voltage AC 60 Hz

125 Volt

Max. input current AC 60 Hz

0.6

Type of voltage (input voltage)

AC/DC

Power output

40

Height

104

Output voltage AC 60 Hz

3.3…24 Volt

Max. output current DC

4.5

Type of output voltage

AC/DC

Max. input current AC 50 Hz

0.6
