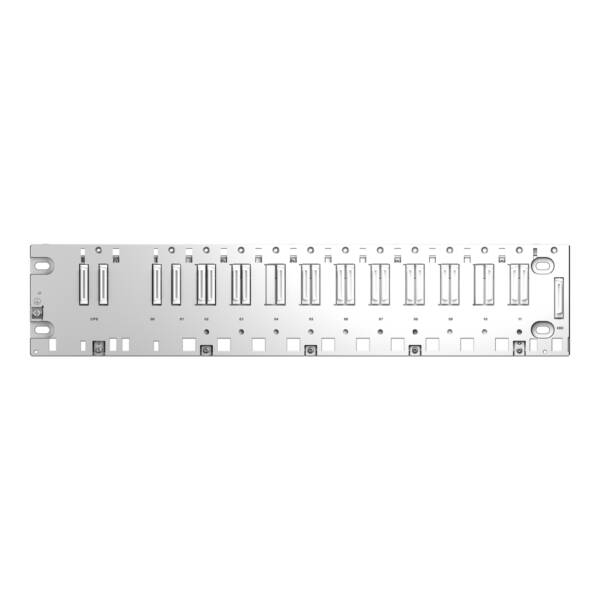

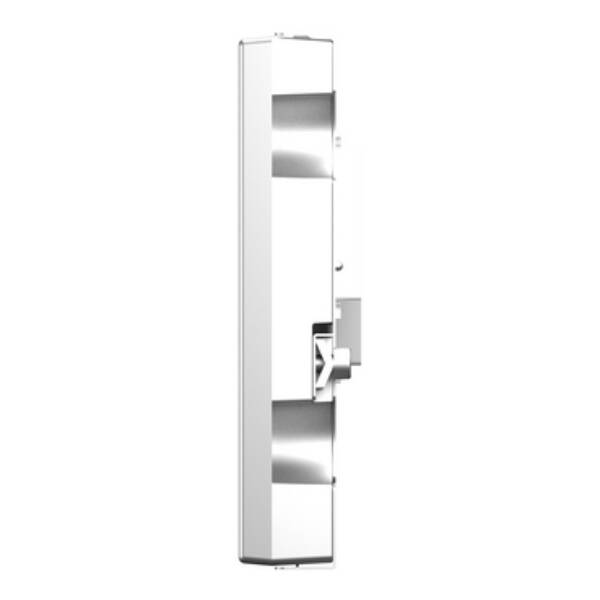

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 10-slot dual Ethernet and X-bus backplane provides 10 slots with 8 Ethernet and X-bus connectors for mixed modules and 2 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 162mA at 24V DC and 76mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1770000 hours of MTBF. It is an IP20 rated product. It weighs 1.37kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS4002, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMEXBP1002

Weight (kg)

1.36 kg

Type

Modicon X80 I/Os

SIL according to IEC 61508

None

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Front build in possible

TRUE

Number of slots

10

Type of voltage (input voltage)

AC/DC

Height

103.7

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Max. output current DC

162

Width

504.5

Rail mounting possible

TRUE

Suitable for safety functions

FALSE

Redundancy

TRUE

Explosion safety category for dust

None

With integrated power supply

TRUE

Rack-assembly possible

TRUE

Depth

19

Explosion safety category for gas

None

Wall mounting/direct mounting

TRUE

Input voltage at DC

3.3…24 V
