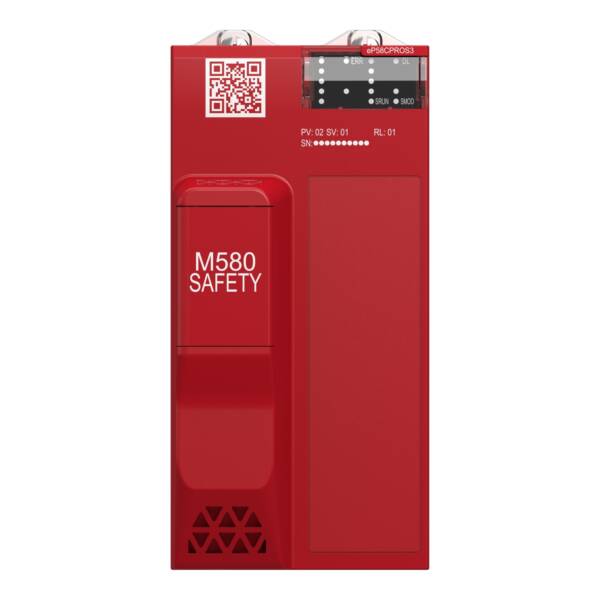

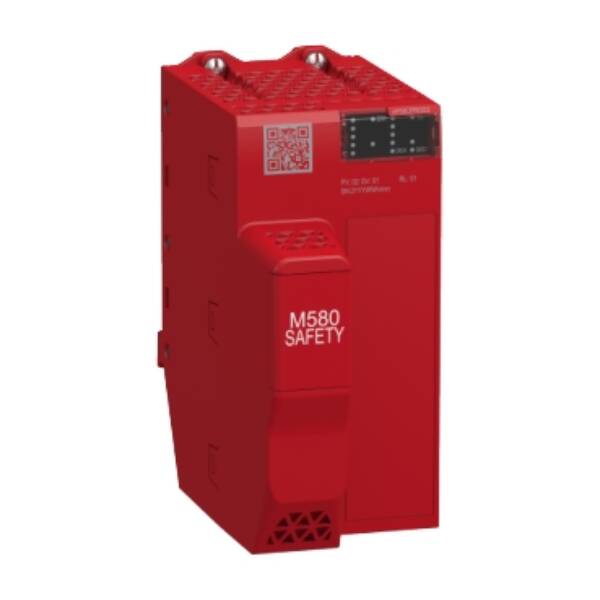

"This Safety CoProcessor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet." 0 "This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F." 0 "This product is IP20 rated and offers 988853 hours of MTBF." "The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm." 0 "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "This processor must be used with a Modicon M580 Safety processor." "The CoProcessor must be installed in the rack next to the CPU, with 2 screws on top of it to maintain the module on the rack." "This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software." "Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data."

Brand

Schneider Electric

Range

Modicon M580 - ePac

Part No

BMEP58CPROS3

Weight (kg)

0.83 kg

Type

Modicon M580 - ePac

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

64

Number of HW-interfaces USB

1

SIL according to IEC 61508

None

With optical interface

FALSE

Additional program memory possible

TRUE

System accessory

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

134.6

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

64.6

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 3D

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

130.3

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

With display

TRUE

Supporting protocol for SafetyBUS p

FALSE

Processing time (1K, binary operation)

0.01

Model

Modular

Voltage type of supply voltage

AC/DC

Type of memory

NVRAM

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Memory size

18000

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

TRUE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Front build in possible

FALSE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Number of digital outputs

4096

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

TRUE

Number of digital inputs

4096

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Number of analogue outputs

1024

Rack-assembly possible

TRUE

Number of analogue inputs

1024

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces industrial Ethernet

3
