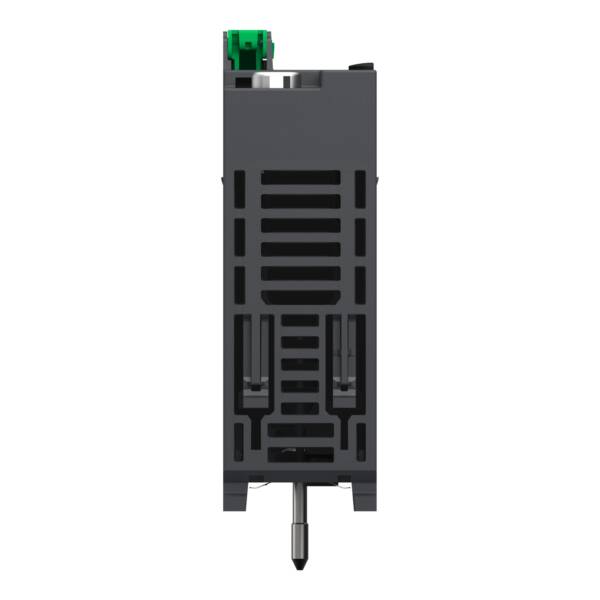

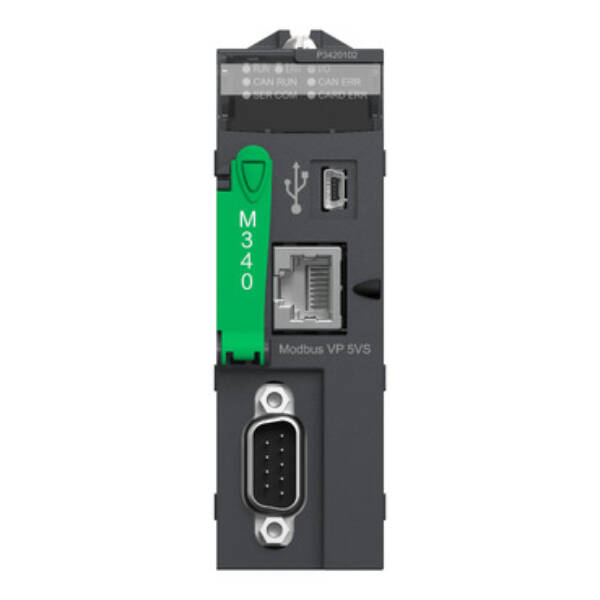

processor module M340 - max 1024 discrete + 256 analog I/O - Schneider Electric - BMXP3420102
processor module M340 - max 1024 discrete + 256 analog I/O - Schneider Electric - BMXP3420102

BMXP3420102

processor module M340 - max 1024 discrete + 256 analog I/O - Schneider Electric - BMXP3420102

Automation

List Price £892.51 +VAT

Our Price £714.01 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels, 63 CANopen slaves and 11 slots. It is a processor module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate. It weighs 0.21kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Brand
Schneider Electric
Range
Modicon M340
Part No
BMXP3420102
Weight (kg)
0.25 kg
Type
Modicon M340
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces other
2
Number of HW-interfaces USB
1
SIL according to IEC 61508
None
With optical interface
FALSE
Additional program memory possible
FALSE
System accessory
FALSE
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
FALSE
Height
100
Supporting protocol for INTERBUS-Safety
FALSE
Width
35
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
Other
Radio standard UMTS
FALSE
Depth
160
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
With display
FALSE
Processing time (1K, binary operation)
12
Model
Modular
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
DC
Type of memory
RAM
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Memory size
4096
Radio standard Bluetooth
FALSE
Supporting protocol for ASI
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Front build in possible
FALSE
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
FALSE
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for INTERBUS
FALSE
IO link master
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
FALSE
Supporting protocol for MODBUS
FALSE
Number of digital outputs
1024
Suitable for safety functions
FALSE
Number of digital inputs
1024
Supporting protocol for Data-Highway
FALSE
Number of analogue outputs
256
Supply voltage DC
24 V
Rack-assembly possible
FALSE
Number of analogue inputs
256
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
FALSE
Number of HW-interfaces RS-485
1
Number of HW-interfaces industrial Ethernet
2
Number of HW-interfaces RS-232
1

Datasheet for BMXP3420102 - processor module M340 - max 1024 discrete + 256 analog I/O - Schneider Electric - BMXP3420102
