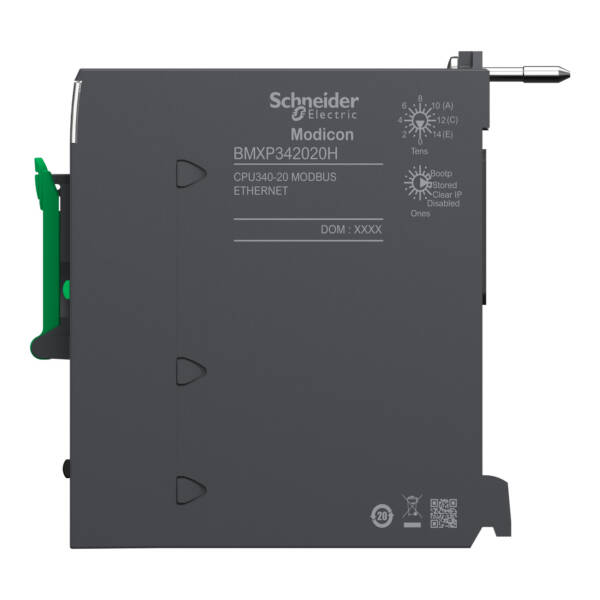

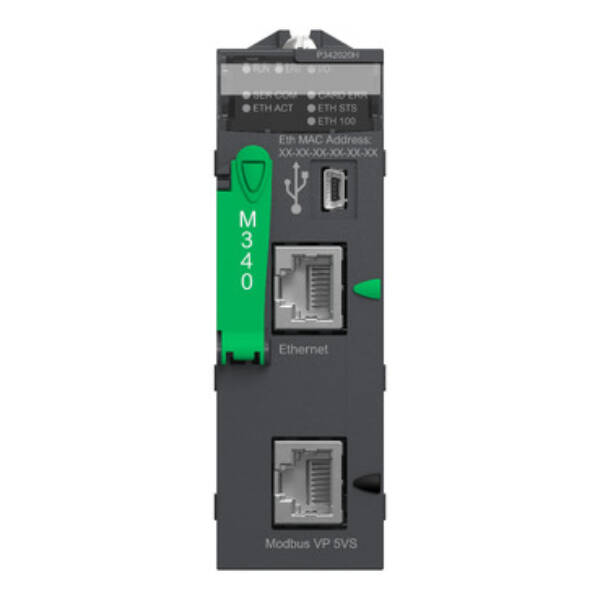

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 4 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 92mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 256kb data, 4096kb, 3584kb program internal RAM. It weighs 0.205kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Brand

Schneider Electric

Range

Modicon M340

Part No

BMXP342020H

Weight (kg)

0.26 kg

Type

Modicon M340

Supporting protocol for IEC 60870

FALSE

Supporting protocol for DNP3

FALSE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

4

Number of HW-interfaces USB

1

SIL according to IEC 61508

None

With optical interface

FALSE

Additional program memory possible

FALSE

System accessory

FALSE

Performance level according to EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

100

Supporting protocol for INTERBUS-Safety

FALSE

Width

35

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

TRUE

Radio standard GSM

FALSE

Explosion safety category for dust

Other

Radio standard UMTS

FALSE

Depth

160

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With display

FALSE

Model

Modular

Supporting protocol for SafetyBUS p

FALSE

Processing time (1K, binary operation)

12

Voltage type (supply voltage)

DC

Type of memory

RAM

Long-Term Evolution (LTE)

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Memory size

4096

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Front built-in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for IEC 61850 Ethernet

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

FALSE

Number of digital outputs

1024

Supporting protocol for Data-Highway

TRUE

Number of digital inputs

1024

Supply voltage DC

24 Volt

Number of analogue outputs

256

Rack-assembly possible

FALSE

Number of analogue inputs

256

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1
