BMXCPS3500

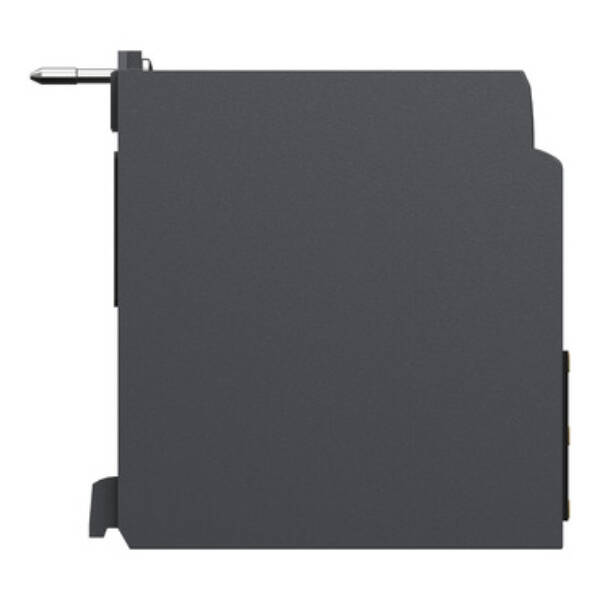

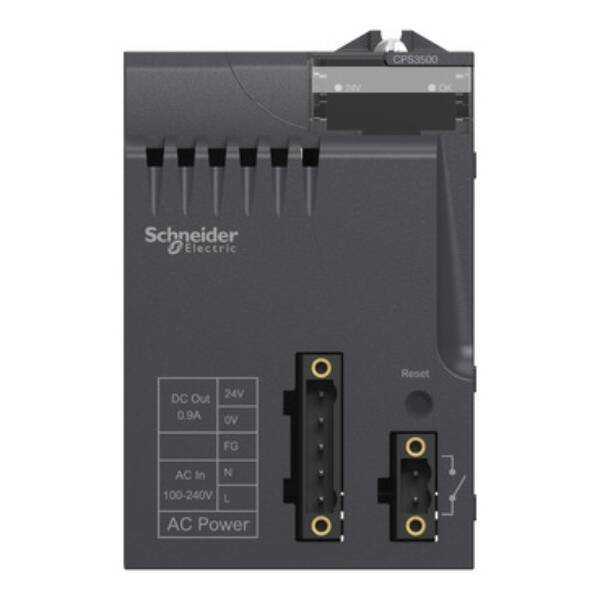

power supply module X80 - 100..240 V AC - 36 W - Schneider Electric - BMXCPS3500
Automation
List Price £486.11
+VAT
Our Price £388.89
+VAT
SAVE 20% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand
Schneider Electric
Range
Modicon X80 I/Os
Part No
BMXCPS3500
Weight (kg)
0.49 kg
Type
Modicon X80 I/Os
Width
68
Suitable for safety functions
FALSE
Redundancy
FALSE
Depth
99
Input voltage at AC 50 Hz
115…230 V
Input voltage at AC 60 Hz
115…230 V
Type of voltage (input voltage)
AC/DC
Max. input current AC 60 Hz
1.04
Power output
36
Height
104
Output voltage at DC
3.3…24 V
Max. output current DC
4.5
Type of output voltage
AC/DC
Max. input current AC 50 Hz
1.04
Datasheet for BMXCPS3500 - power supply module X80 - 100..240 V AC - 36 W - Schneider Electric - BMXCPS3500
Download
