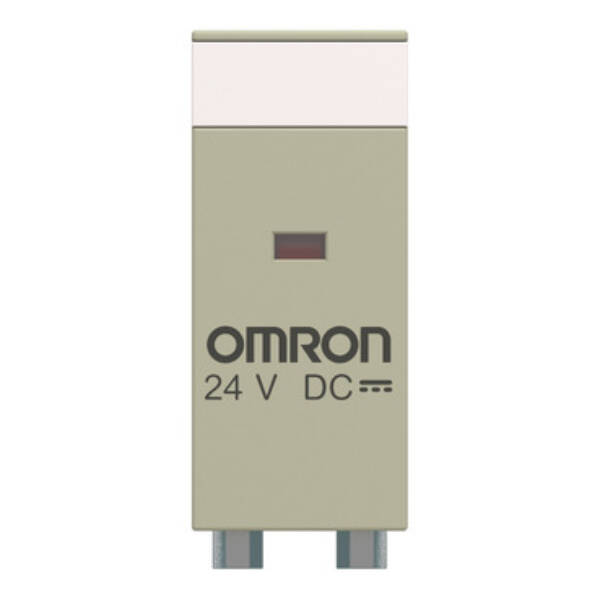

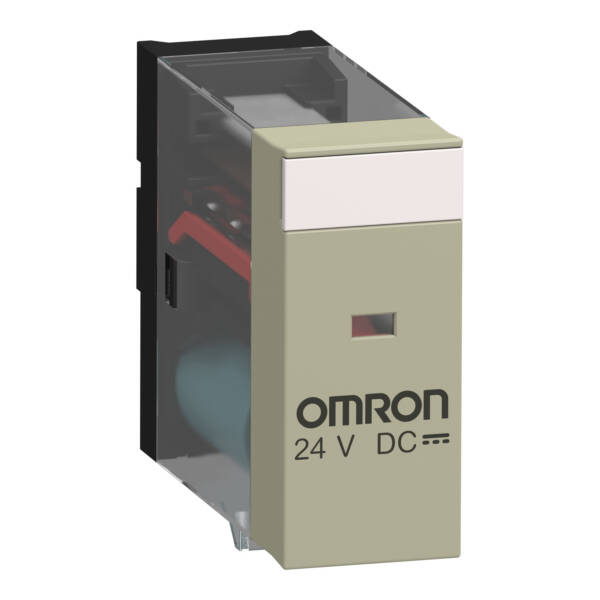

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in electromechanical relay is compatible with Modicon ABE7 connection sub-bases. It has 1 change over contact. It is a solid state relay with a control circuit voltage of 24V DC, a conventional free air thermal current of 10A and a maximum power dissipation per pole is 0.6W. It offers electrical durability of 500000 cycles and mechanical durability of 20 million cycles. The width pitch is 12mm. It weighs 0.017kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P08T330E, ABE7R16T332, ABE7P16T334, ABE7P16T318E, ABE7P16T318, ABE7P16T332, ABE7P16T330, ABE7R16T330, ABE7P16T330E and ABE7P08T330 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABR7S33

Weight (kg)

0.02 kg

Type

Advantys Telefast ABE 7

Rated current

0.1

Built-in depth

55

Supply voltage

230 Volt

Voltage type (supply voltage)

AC/DC

Mounting method

DIN rail

Control voltage 1

24 Volt

Type of control voltage 1

AC/DC

Number of contacts as change-over contact

1

Function

Partially electronic
