PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20 - Schneider Electric - NSYTBP19168
PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20 - Schneider Electric - NSYTBP19168

NSYTBP19168

PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20 - Schneider Electric - NSYTBP19168

Enclosures

List Price £29.33 +VAT

Our Price £22.00 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

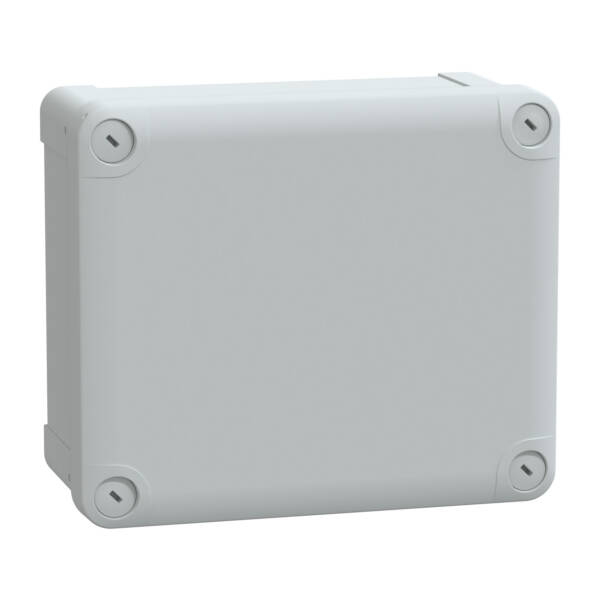

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 175 x 150 x 80 mm. Ext is 193 x 164 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Brand
Schneider Electric
Range
PanelSeT TBP
Part No
NSYTBP19168
Weight (kg)
0.50 kg
Type
Thalassa TBP
Surface protection
Untreated
With mounting plate
FALSE
Type of cover
Cover
Extension possible
FALSE
RAL-number
7035
Height
192
Type of door
None
Internal depth
80
Transparent cover/door
FALSE
Degree of protection (IP)
IP66
Cover model
Closed
Colour
Grey
Width
164
Circuit integrity
None
Suitable for outdoor use
TRUE
Material housing
Plastic
Mounting method
Surface mounted (plaster)
Protection class
II
Depth
87
With lock
FALSE
Impact strength
IK08
Degree of protection (NEMA)
4X

Datasheet for NSYTBP19168 - PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20 - Schneider Electric - NSYTBP19168
